Twin Screw Extruder HPL75 Model for materbatch 500-700kg/h
Contact Person : Grace Pu
Phone Number : 86-18180485887
WhatsApp : +8618180485887
| Minimum Order Quantity : | 1 set | Price : | USD 34000-200000 |
|---|---|---|---|
| Packaging Details : | Wooden base plate, damp proof plastic lining | Delivery Time : | 90 days after payment of deposit |
| Payment Terms : | T/T | Supply Ability : | 300 sets per year |
| Place of Origin: | SICHUAN,CHINA | Brand Name: | ADVS |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | HPL51 |
|
Detail Information |
|||
| Output: | 350~500kg/h | Plastic Processed: | PC、ABS |
|---|---|---|---|
| Center Distance: | 42mm | Motor Power: | 110kw |
| Warranty: | Extruder 1 Year, Gearbox 3 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Online Support, Commissioning And Training, Video Technical Support |
| Automatic Grade: | Automatic | Condition: | New |
| Inverter: | ABB/SIEMENS And According To Your Need | ||
| Highlight: | ABS twin screw extruder,HPL51 twin screw extruder,PC twin screw extruder |
||
Product Description

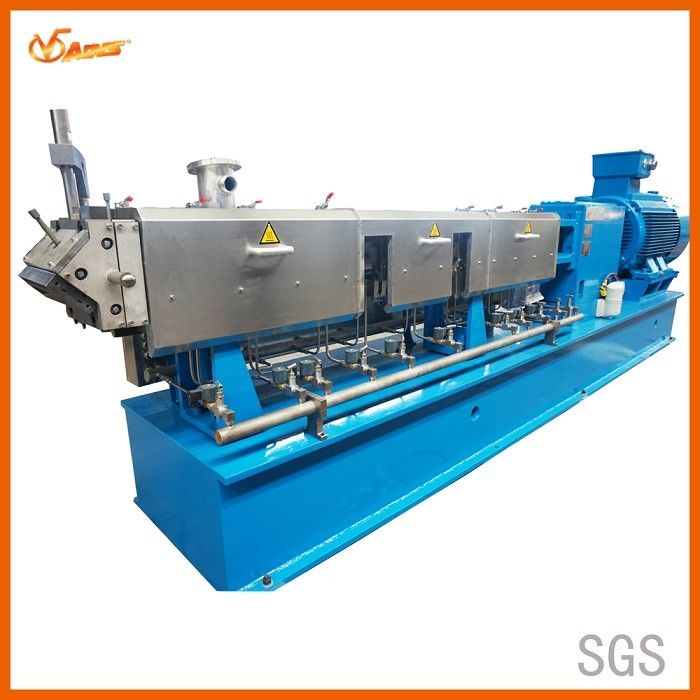

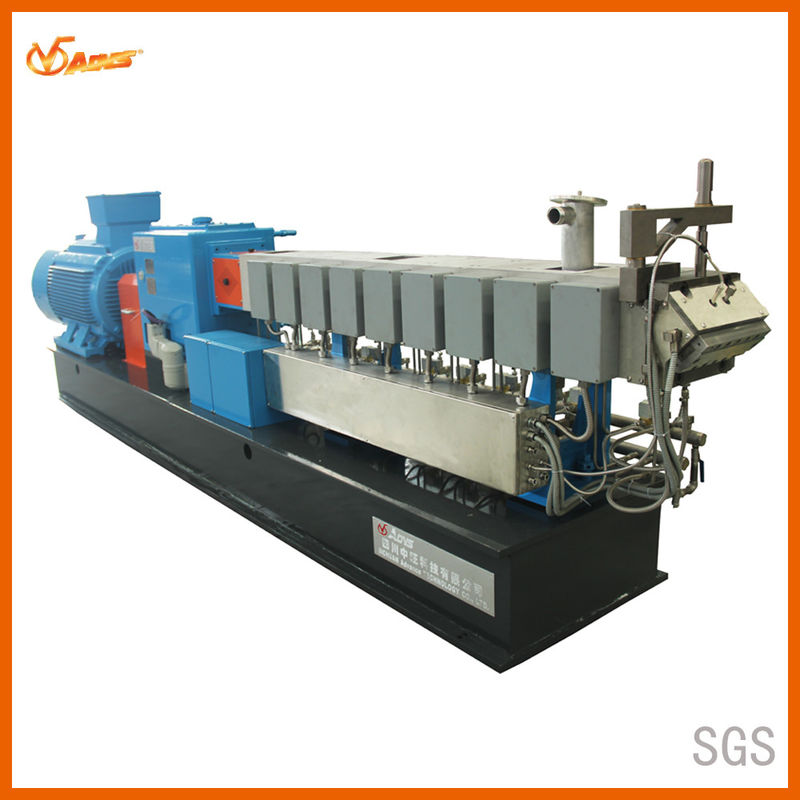

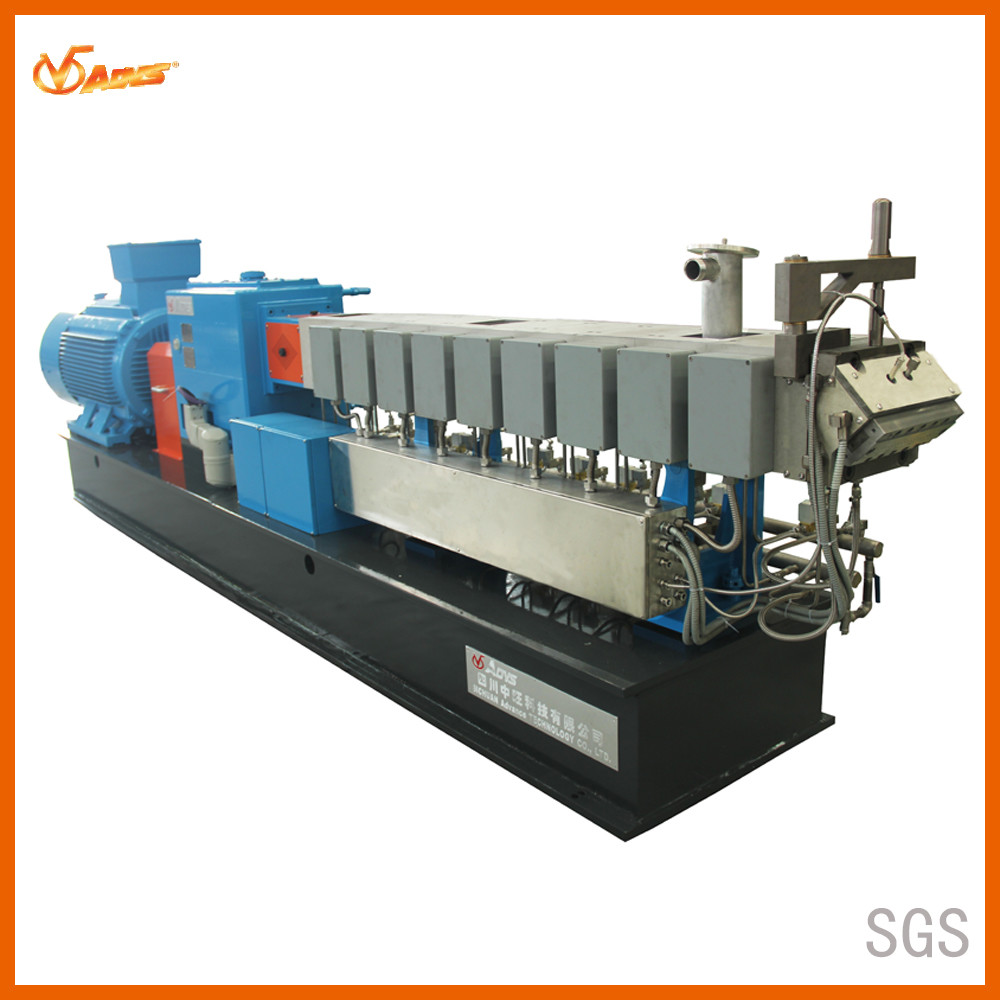

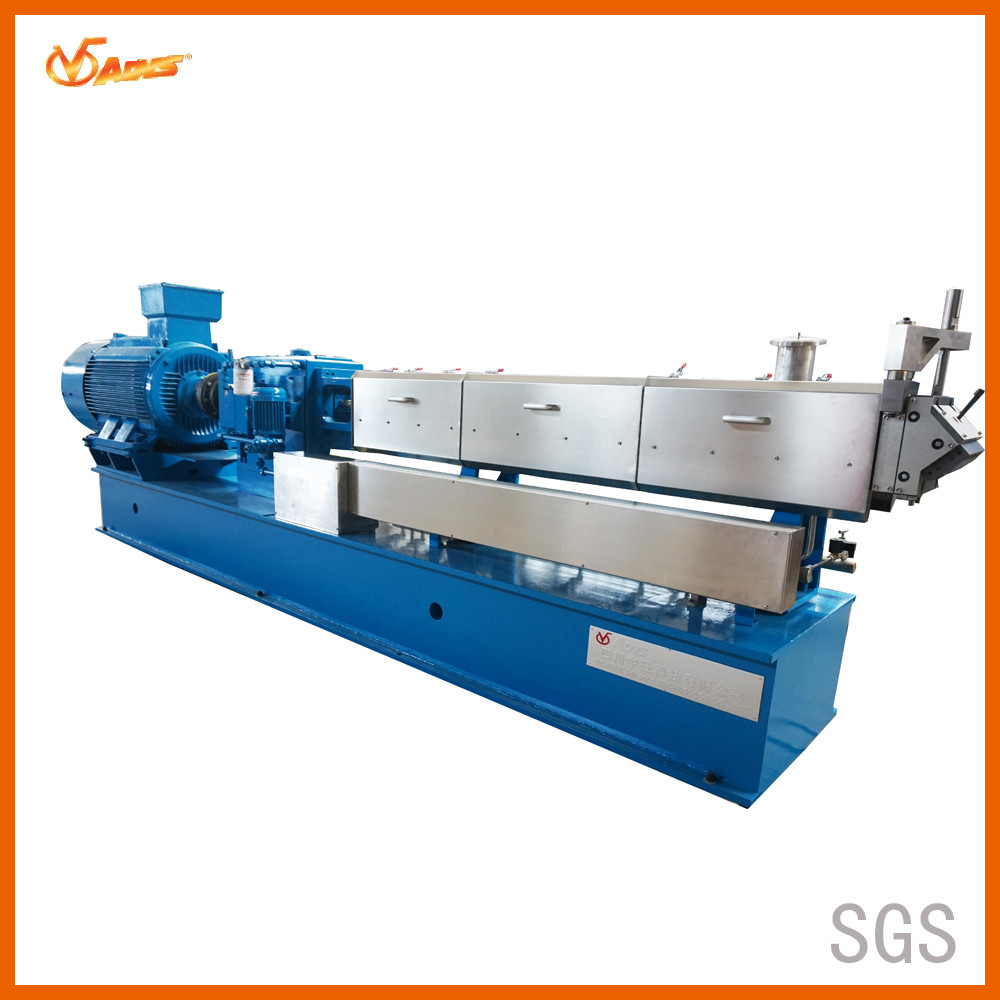

HPL51 twin screw extruder with PC,ABS material ,Output is 350~500kg/h
Technical data :
| Model | HPL35 | HPL40 | HPL51 | HPL62 | HPL77 | HPL95 |
| Parameter | ||||||
|
Screw diameter (mm) |
35.6 | 43 | 51 | 61.5 | 77 | 95 |
| L/D | 48 | 48 | 48 | 48 | 48 | 48 |
|
Main motor (kw) |
37 | 55 | 110 | 185 | 355 | 450 |
|
Max. Speed (rpm) |
600 | 500 | 600 | 600 | 600 | 400 |
|
T/A3 (Nm/cm3) |
11 | 11.5 | 11.8 | 11.3 | 11 | 11.3 |
|
Center distance (mm) |
30 | 35.8 | 42 | 51 | 64 | 78 |
| OD/ID | 1.54 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 |
| Output (kg/h) | 40～80 | 150～220 | 350～500 | 600～800 | 1000～1500 | 1500～2200 |
