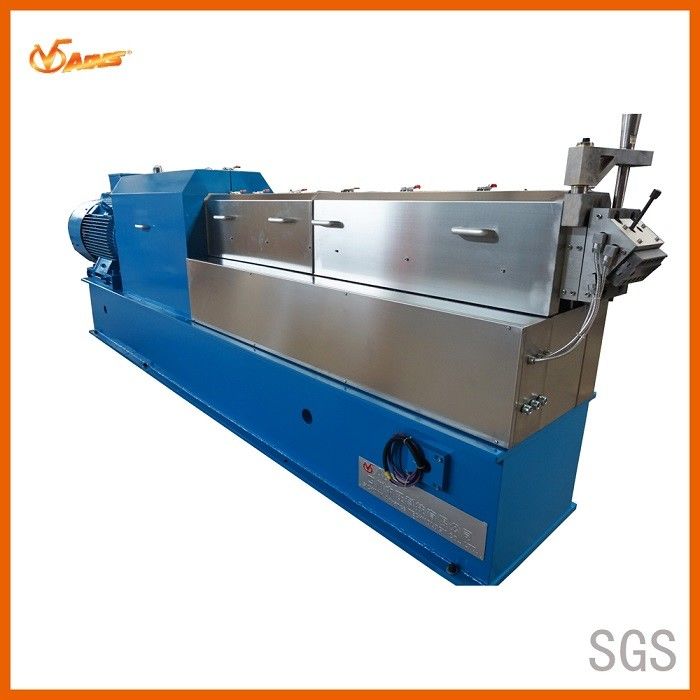

1500 - 1800 Rpm / H Recycled Plastic Extruder , Pipe Extrusion Machine HPH Series

1500 - 1800 Rpm / H Recycled Plastic Extruder , Pipe Extrusion Machine HPH Series

1500 - 1800 Rpm / H Recycled Plastic Extruder , Pipe Extrusion Machine HPH Series

Brand Name:	ADVS
Model Number:	HPH
MOQ:	1 SET
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Automatic Grade:

Automatic

Condition:

New

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Warranty:

1 Year

Packaging Details:

wooden case

Highlight:

recycled plastic extruder

,

plastic extrusion equipment

Product Description

HPH Series High Speed Twin Screw Extruder

1 . Technical dates of HPH series high speed extruder :

Datas/Type	HPH28	HPH44	HPH53	HPH65	HPH80
Screw diameter	28	44	53	65	80
L/D	40	40	40	40	40
Motor power	45	185	280	500	750
Max. Speed	1800	1800	1800	1800	1500
T/A3	11.3	11.3	11.3	11.3	11.3
Center distance	22.5	35.8	42	51	63.8
OD/ID	1.66	1.66	1.66	1.66	1.66
Output range	100~150	380~650	800~1200	1200~2000	1500~2600

2. Typical application :

Reinforce modification : PP ,PA ,PET + Carbon fiber ,Glass fiber ;

Filled modification : PE ,PP , Talcum powder , Titanium dioxide and other inorganic filler ;

Special Engineering Plastic : PEEK , PEI , PPS , PPSU , PA6T , PA9T , LCP , etc .

High compouding dispersion extrusion : nano material , powder coating and fiber grade masterbatch ;
