PZE Series Competitive Twin Screw Extruder with High Output

Brand Name:	ADVS
Model Number:	PZE
MOQ:	1 SET
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Automatic Grade:

Automatic

Warranty:

1 Year

L/d:

Product Name:

Twin Screw Extruder

Packaging Details:

wooden case

Highlight:

twin screw plastic extruder

recycled plastic extruder

Product Description

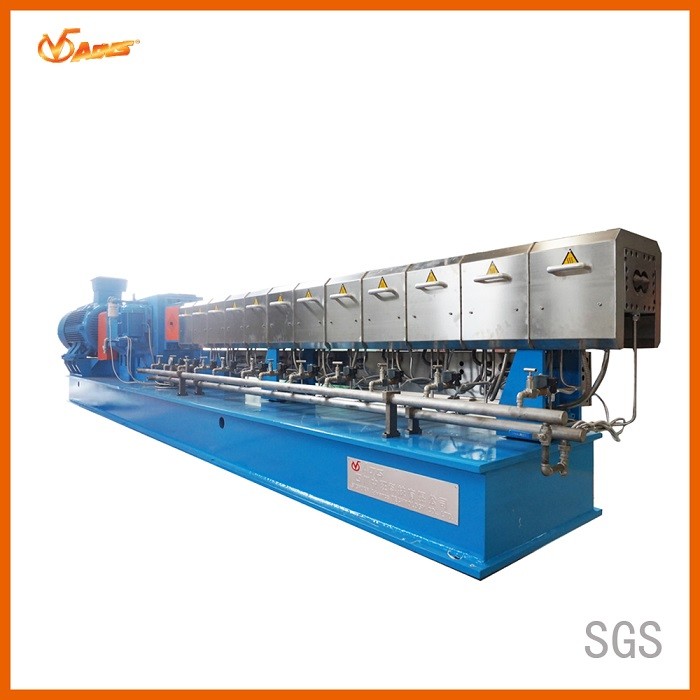

PZE Series Competitive Twin Screw Extruder with High Output

1 . Configuration Feartures of PZE Series Screw Extruder :

A . gearbox : our transmission gearbox is the most advance ones : bilatral symmetry gear drive system ; designed service life more than 72000hrs , average torque coefficient=7.9 , brand of bearing are Sweden SKF and Germany INA ;

B . Barrels : integrated wear-resistant alloy steel liner ; Channel of barrels is annular jet type , not easy to belocked ;

C . Scew shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is 40CrNiMo .

D. Machine frame : high rigidity whole steel plate welding ；

E. Electrical system : PLC and instrument control for your choice ; control cabinet and power cabinet are seperate , strong and weak electricity are isolated installed .

2 . Technical datas of PZE series extruder :

Datas/Type	PZE65			PZE75
Screw diameter	62.5			71	71	71
L/D	40			40	40	40
Motor power	110	132	160	185	200	280
Max. Speed	600	600	600	500	600	600
T/A3	7.5	8.5	9.2	7.5	8.5	9.2
Center distance	52	52	52	60	60	60
OD/ID	1.53	1.53	1.53	1.48	1.48	1.54
Output range	300-400	350-500	550-700	500-800	750-900	1000-1400
