Twin Screw Extruder HPL75 Model for materbatch 500-700kg/h
Contact Person : Grace Pu
Phone Number : 86-18180485887
WhatsApp : +8618180485887
| Minimum Order Quantity : | 1 set | Price : | USD 34000-200000 |
|---|---|---|---|
| Packaging Details : | iron box | Delivery Time : | 65-70 work days |
| Payment Terms : | T/T |
| Place of Origin: | CHINA | Brand Name: | ADVS |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | HPL177 |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| Plastic Processed: | PE | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Inverter: | ABB/SIEMENS And According To Your Need | Name: | Twin Screw Extruders For Masterbatch/plastic Machinery |
| Highlight: | twin screw plastic extruder,plastic extrusion equipment |
||
Product Description

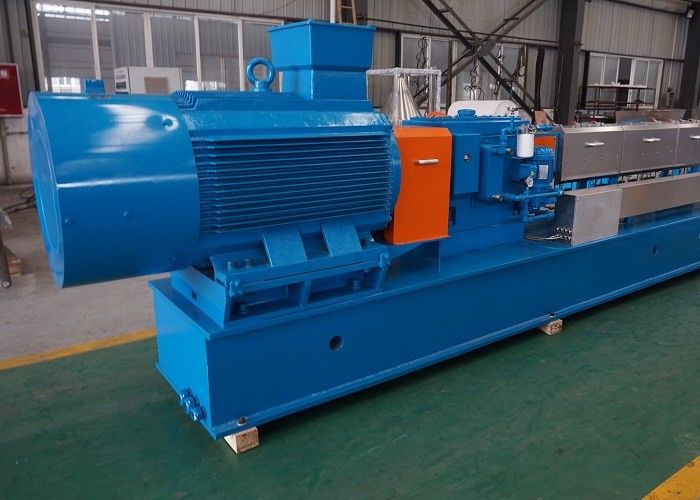

HPL177 Twin Screw Extruder with 12000kg/h 2500kw
Basic Information :
| Model NO. |
HPL145
|
| Type | Twin Screw Extruder |
| Plastic Processed | PP |
| Product Type | Granulating Extruder |
| Feeding Mode | Multiple Feed |
|
Assembly Structure
|
Integral Type Extruder |
| Screw |
Twin-Screw
|
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Deep Screw |
|
Exhaust
|
Exhaust
|
| Automation | Automation |
|
Computerized
|
Computerized
|
| Trademark | ADVS |
| Transport Package |
Iron Box
|
| Specification | screw diameter 43mm |
| Origin |
Si Chuan China
|
Configuration feartures of HPL series extruder :
1. gearbox: bilatral symmetry gear drive system; design service life more than 72000hrs, average torque coefficient=10.4, brand of bearing are Sweden SKF and Germany INA;
2. Torque limiter:torque limiter imported from Germany;
3. Barrel: integrated wear-resistant alloy steel liner; Channel of barrel is annular jet type, not easy to belocked;
4. Scew shaft: material of screw element is W6Cr5Mo4V2; Material of shaft is high imported from Finland.
5. Heating medium: heating rod imported from Germany;
6. Machine frame: high rigidity whole steel plate welding;
7. Electrical system: PLC and instrument control for your choice; control cabinet and power cabinet are seperate, strong and weak electrical are isolated installed.
| Datas/ Type | HPL133 | HPL136 | HPL145 | PHL177 | PHL200 |
| Screw diameter | 133 | 136 | 145 | 177 | 200 |
| L/D | 40 | 40 | 40 | 40 | 40 |
| Mortor power (KW) | 1200 | 1200 | 1500 | 2500 | 3600 |
| Max Speed | 400 | 400 | 400 | 400 | 360 |
| T/A3 | 12 | 12 | 12 | 12 | 12 |
| Center distance | 110 | 112 | 120 | 169 | 169 |
| OD/ID | 1.56 | 1.56 | 1.56 | 1.56 | 1.56 |
| Output range | 5000 | 5000 | 7200 | 18000 | 18000 |
