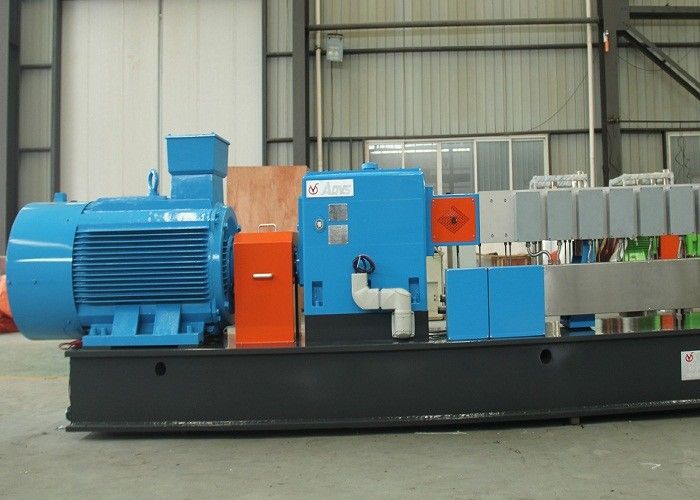

Full Intermeshing Plastic Twin Screw Extruder With Bilateral Symmetry Gearbox

Name: Full Intermeshing Plastic Twin Screw Extruder With Bilateral Symmetry Gearbox
Brand: Sichuan Advance technology Co.,Ltd
SKU: HPL133
Price: 117,000.00 USD
Availability: InStock

Brand Name:	ADVS
Model Number:	HPL133
MOQ:	1 set
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Model:

HPL133

Application:

Twin Screw Extruder

Item:

Plastic Twin Screw Extruder

System:

Bilateral Symmetry Gearbox

Packaging Details:

iron box

Highlight:

twin screw plastic extruder

recycled plastic extruder

Product Description

HPL133 Twin Screw Extruder with Bilateral Symmetry Gearbox

Basic Information :

Model NO.	HPL133
Type	Twin Screw Extruder
Plastic Processed	PP
Product Type	Granulating Extruder
Feeding Mode	Multiple Feed
Assembly Structure	Integral Type Extruder
Screw	Twin-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Trademark	ADVS
Transport Package	Iron Box
Specification	screw diameter 43mm
Origin	Si Chuan China

Configuration feartures of HPL series extruder :

1. gearbox: bilatral symmetry gear drive system; design service life more than 72000hrs, average torque coefficient=10.4, brand of bearing are Sweden SKF and Germany INA;

2. Torque limiter:torque limiter imported from Germany;

3 . Barrel: integrated wear-resistant alloy steel liner; Channel of barrel is annular jet type, not easy to belocked;

4. Scew shaft: material of screw element is W6Cr5Mo4V2; Material of shaft is high imported from Finland.

5. Heating medium: heating rod imported from Germany;

6. Machine frame: high rigidity whole steel plate welding;

7. Electrical system: PLC and instrument control for your choice; control cabinet and power cabinet are seperate, strong and weak electrical are isolated installed.

Datas/ Type	HPL133	HPL136	HPL145	PHL177	PHL200
Screw diameter	133	136	145	177	200
L/D	40	40	40	40	40
Mortor power (KW)	1200	1200	1500	2500	3600
Max Speed	400	400	400	400	360
T/A3	12	12	12	12	12
Center distance	110	112	120	169	169
OD/ID	1.56	1.56	1.56	1.56	1.56
Output range	5000	5000	7200	18000	18000
