Product Description
PHL51 Twin Screw Extruder Center Diameter 35.8mm Output 500-700kg
1 . Product Description :
Sichuan Advance technology Co . , Ltd is dedicate to develop , design , and manufacture co-rotation , counter- rotation parallel twin screw
extruder production line . we integrate and upgrade these experiences to create our transmission concept and form our core technology "
bilateral gear symmetrical driving system " . The technology enables our extruders have the advantages of " High torque , high efficiency , low
energy-consumption , high price / performance ratio , long service life . " We keep pace with the first class extruder manufactures in the world .
2. Configuration Feartures of HPL51 Screw Extruder :
A . gearbox : bilatral symmetry gear drive system ; design service life more than 72000hrs , average torque coefficient=10.4 , brand of bearing are Sweden SKF and Germany INA ;
B .Torque limiter : torque limiter imported from Germany ;
C . Barrel : integrated wear-resistant alloy steel liner ; Channel of barrel is annular jet type , not easy to belocked ;
D . Scew shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is high imported from Finland .
3 . Technical dates of HPL51 standard extruder :
| |
Screw diameter |
Center distance |
T / A3 |
Max . Speed |
Motor power |
OD/ID |
Output range |
| HPL51 |
51 mm |
42 mm |
12 nm/cm3 |
1200 rpm |
200 kw |
1.55 |
460 - 700 kg/h |
| HPL51 |
51 mm |
42 mm |
11.5 nm/cm3 |
1000 rpm |
160 kw |
1.55 |
300 - 500 kg/h |
4 . Typical application :
Special Engineering Plastic : PEEK , PEI , PPS , PPSU , PA6T , PA9T , LCP , etc .
High compouding dispersion extrusion : nano material , powder coating and fiber grade masterbatch ;
Reaction extrusion : polyreaction andpolycondension ;

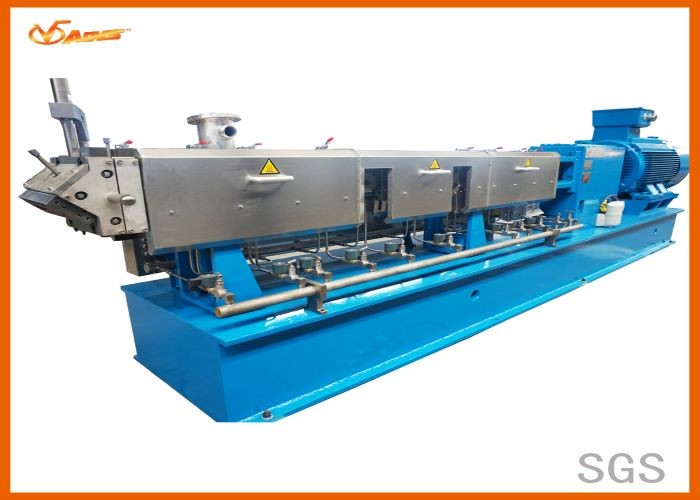

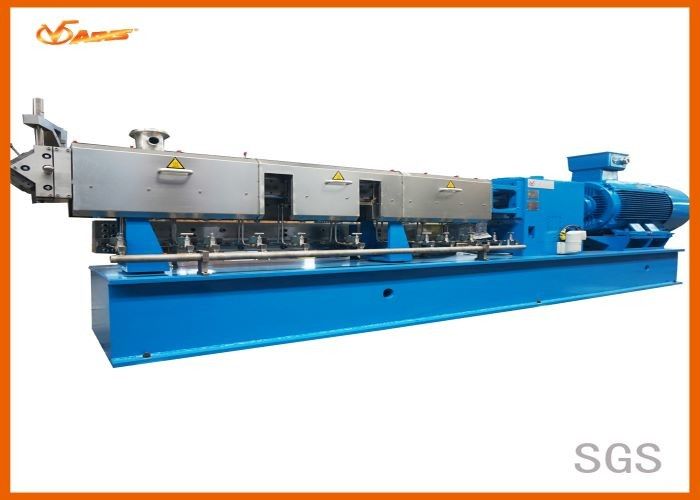

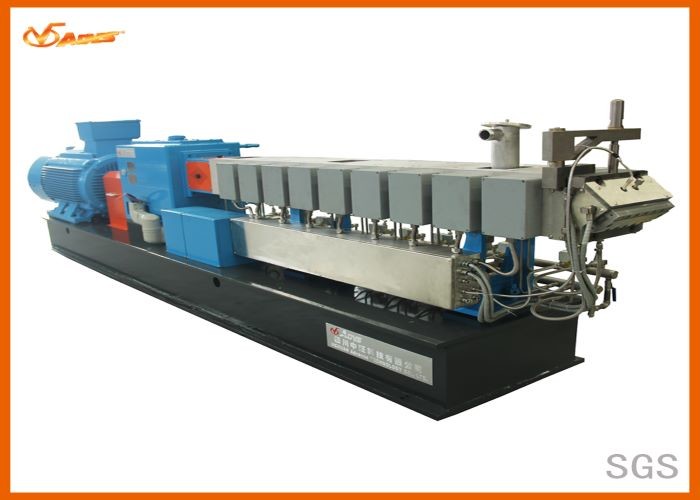

5 . Pictures :
