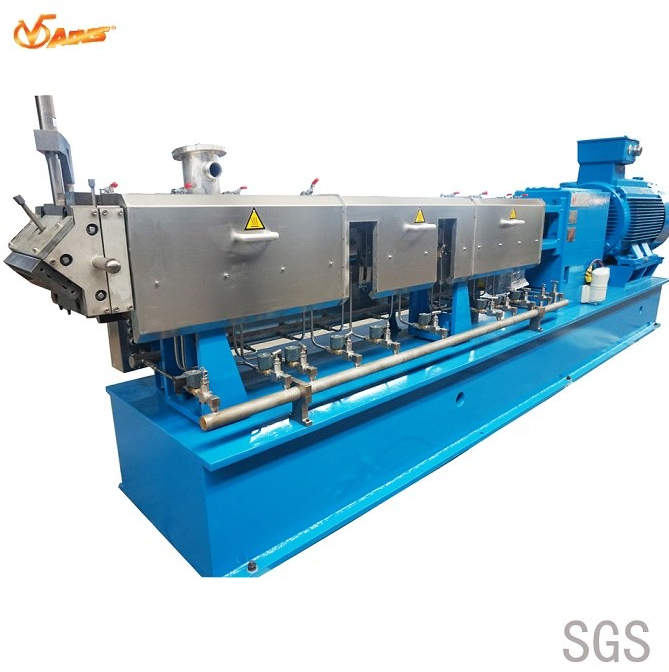

Blue Twin Screw Extruder for Compounding Pelletizing | ISO9001 | High Torque

• Co-rotating high-torque gearbox (11.5 Nm/cm³)
• Segmented screw & barrel, flexible L/D 40-64
• Blue paint as standard, or customized color
• Efficient vacuum venting, low volatiles
• CE, ISO9001, 12-month warranty

“After setting up over 50 compounding lines, I’ve learned one thing: the extruder is only as good as its screw configuration. Our blue extruder isn’t just painted pretty — it’s engineered to handle the toughest masterbatch recipes. I’ve personally seen it run 40% carbon black masterbatch for 72 hours straight without a single vent port clog. The barrel temperature stays within ±2°C, and the pellets come out with perfect color dispersion. That’s the reliability you need when your customer is a demanding packaging manufacturer.”

• Gearbox: Adopts hardened ground gears with 11.5 Nm/cm³ specific torque, allowing higher screw filling degree without overload.
• Screw & Barrel: Made of high-nitriding steel (38CrMoAlA), barrel with bimetallic lining (HRC 60-64). Segmented elements let you tailor kneading, conveying and venting zones for any recipe.
• Temperature Control: Multi-zone oil or water cooling, with PID self-tuning, maintaining melt temperature fluctuation within ±2°C — critical for heat-sensitive masterbatch.
• Die Head & Pelletizer: Quick-change screen changer, water-ring or strand pelletizer available. Our pelletizer blade gap is factory-set to 0.05mm, ensuring clean cuts and minimal dust.
• Safety & Standards: Full CE safety guards, emergency stops at every bay. ISO9001 certified production process, every machine dyno tested for 2 hours before dispatch.

• ISO 9001:2015 certified manufacturing
• CE marking for European market compliance
• Member of China Plastic Machinery Industry Association
• Supplied to masterbatch producers in 20+ countries, including those approved by major packaging and automotive brands
• “Our blue extruders are running at factories that supply global FMCG brands — from food packaging to automotive interior compounds.”

“The blue extruder not only looks great, but the dispersion quality is exactly what our film customers demand. Output almost doubled, and the stability is fantastic. We are planning our second line.”
— General Manager, Masterbatch Manufacturer, Egypt
