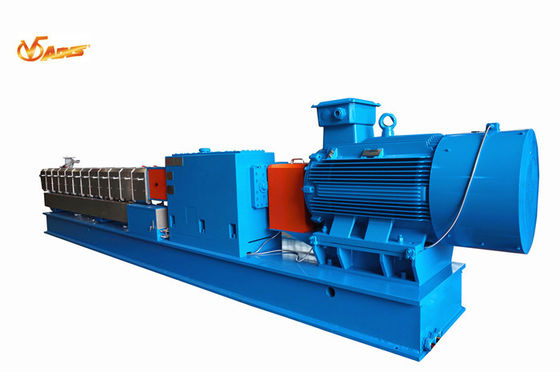

HPL77 High Output Mixing Compounding Twin Screw Extruder Special For Reinforce Modification

HPL77 High Output Mixing Compounding Twin Screw Extruder Special For Reinforce Modification

HPL series twin screw extruders are successfully applied in PP.PA.PBT.ABS.PC.POM.PPS.PET+GF.PET+CF to reinforce modification. For the high torque, it has higher output and lower temperature than other low torque extruders.We guanrantee the rate of MI change lower than 15%.

• High output
  The output is 1-2 times larger than the same size extruder from other lower torque twin screw extruders.
  The biggest extruder can output up to 12T/h per set.
• Energy-saving
  For the same output , our small size extruder can replace the big size of other extruder, such as our HPL51 has more output than other 65 extruder , smaller extruder, less energy consumption,less material consumption, smaller production areas.
  And we use heat rod instead of cast copper heater, which can save 15%-20% energy.
• Advanced design
  High torque: carrying capacity factor of gearbox up to 15Nm/cm3;
  High speed: max. 1800rpm/m；
• Long service life
  bearings on output shaft 2 without load, which greatly extended the service life of the bearings on the weak axis , gearbox life can reach 72000 hours (10 years)；
• Custom made design
  Wide D/d choice:1.33～2.0;
  Custom made clearance: minimum clearance can be 0.15mm；

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.

We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.

We can supply :Twin screw extruder production line;

                      High torque gearbox;

                     Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;

                     Counter-rotation parallel twin screw extruder;

                     Differential concentration mixer;

                     Repairing and machining large parts;

                     Design, machine all of screw elements on Japan and Germany extruders.
