Split Casting Barrel Structure for 27mm Diameter Counter-Rotating Twin Screw Extruder

Product Description

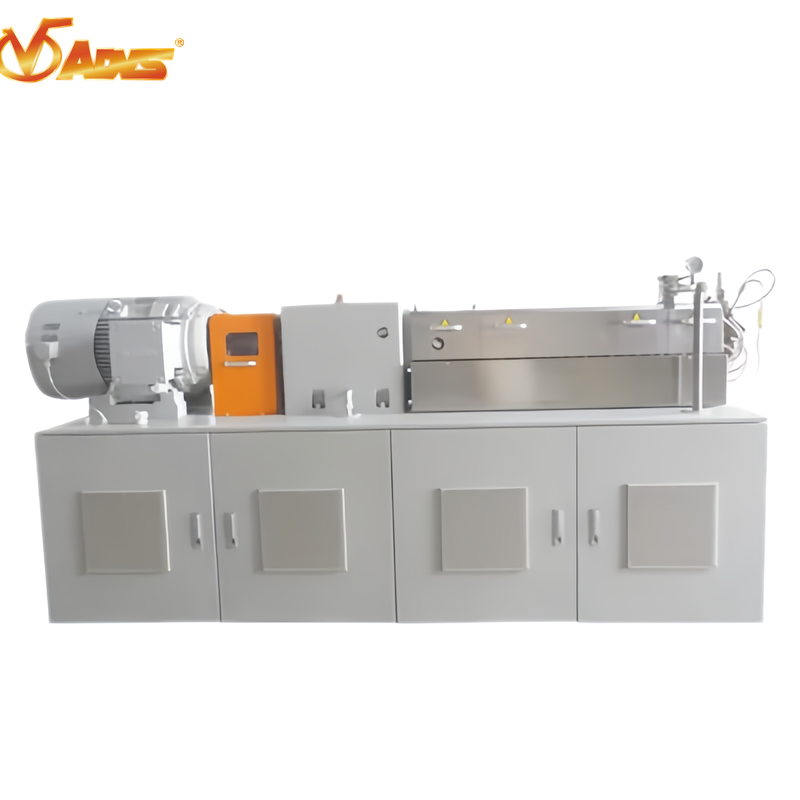

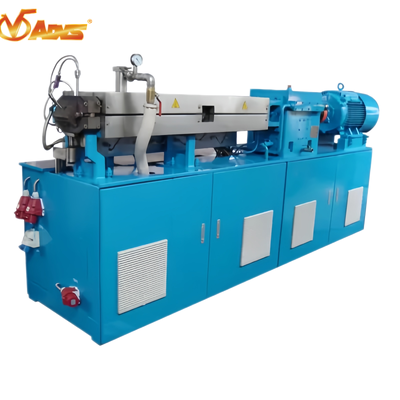

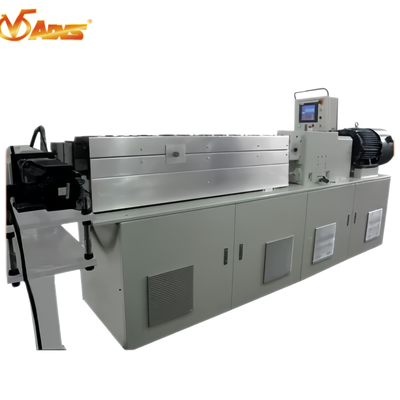

HPL 27 Co-rotating Twin Screw Extruder with Split-Casting Barrel Structure

1. Technical Data of HPL27 Standard Extrusion

2. Configuration Features of HPL27 Extruder

• Gearbox
  Bilateral symmetry gear drive system. Design service life exceeds 72,000 hours. Average torque coefficient is 10.4. Bearings are from SKF (Sweden) and INA (Germany).

• Torque limiter
  Torque limiter imported from Germany.

• Barrels
  Integrated wear-resistant alloy steel liner. The barrel channel is of annular jet type, which is not prone to blockage.

• Screw shaft
  Material of screw elements: W6Cr5Mo4V2. Material of shaft: imported from Finland.

• Heating medium
  Heating rod imported from Germany.

• Machine frame
  High-rigidity whole steel plate welded frame.

• Electrical system
  PLC and instrument control available (user’s choice). Control cabinet and power cabinet are separate; strong and weak electricity are isolated.

3. Typical Applications

• Reinforced modification
  PP, PA, PBT, ABS, PC

• Reaction extrusion
  Polyreaction and polycondensation

• Special engineering plastics
  PEEK, PEI, PPS, LCP, etc.

• Masterbatch
  Color masterbatch, flame retardant masterbatch, carbon black masterbatch, degradable masterbatch
