7200 kg per hour Compounding Twin Screw Extruder 1500kw Motor Power

Name: 7200 kg per hour Compounding Twin Screw Extruder 1500kw Motor Power
Brand: Sichuan Advance technology Co.,Ltd
SKU: HPL145
Price: 117,000.00 USD
Availability: InStock

Brand Name:	ADVS
Model Number:	HPL145
MOQ:	1 set
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Condition:

New

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Automatic Grade:

Automatic

Output:

7200 Kg/H

Plastic Processed:

Power:

1500kw

Highlight:

Double Screw Extruder Machine, Twin Screw Extrusion Machine

Packaging Details:

Iron Box

Highlight:

7200 kg per hour twin screw extruder

1500kw motor compounding extruder

high-capacity twin screw extruder

Product Description

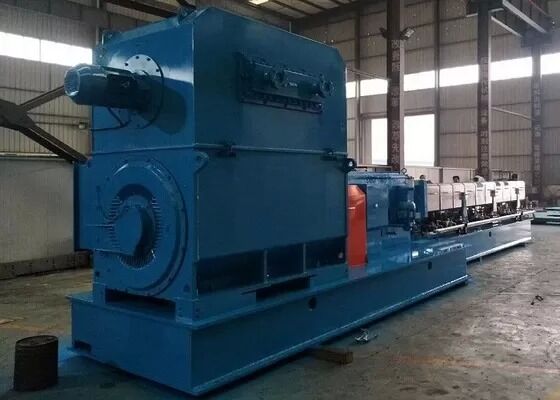

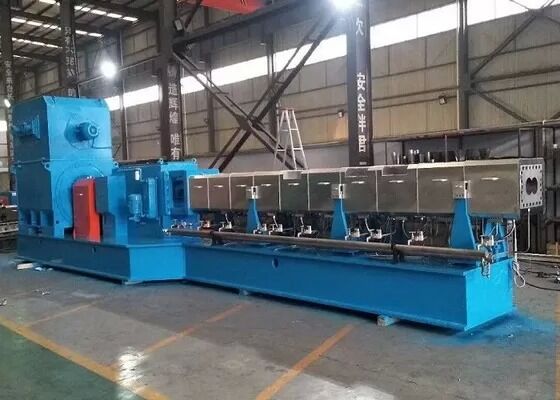

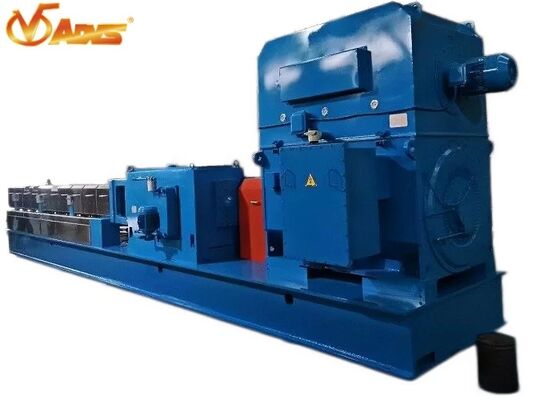

HPL145 Twin Screw Extruder with 7200 kg/h 1500kw

1 . Basic Information :

Item	Specification
Model No.	HPL145
Equipment Type	Twin Screw Extruder
Primary Processed Plastic	PP
Product Category	Granulating Extruder
Feeding Mode	Multiple Feeding System
Assembly Structure	Integral Type
Screw Configuration	Twin Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw Channel
Exhaust System	Multi-stage Exhaust
Control System	Highly Automated and Computerized
Trademark	ADVS
Transport Package	Iron Box
Screw Diameter	145mm
Origin	Sichuan China

2 . Configuration feartures of HPL series extruder :

Model	Screw Diameter (mm)	L/D Ratio	Motor Power (kw)	Max Speed (rpm)	T/A3 Ratio	Center Distance (mm)	OD/ID Ratio	Output Range (kg per hour)
HPL133	133	40	1200	400	12	110	1.56	5000
HPL136	136	40	1200	400	12	112	1.56	5000
HPL145	145	40	1500	400	12	120	1.56	7200
HPL177	177	40	2500	400	12	169	1.56	18000
HPL200	200	40	3600	360	12	169	1.56	18000

3 . Typical application :

Reinforcement modification PP PA PBT ABS PC POM PPS PET with carbon fiber and glass fiber
Filling modification PE PP EVA with calcium carbonate talcum powder titanium dioxide carbon black and other inorganic fillers
Masterbatch production Color masterbatch flame retardant masterbatch carbon black masterbatch degradable masterbatch
Plastic alloy production PC and ABS PA and ABS PA and PE PBT and PET
Special engineering plastic processing PEEK PEI PPS PPSU PA6T PA9T LCP
High compounding dispersion extrusion Nano material powder coating and fiber grade masterbatch
Reaction extrusion Polymerization and polycondensation
