90KW 250mm Twin Screw Extruder Center Distance 186mm

Minimum Order Quantity :	1 set	Price :	USD 350000-450000
Packaging Details :	wooden case	Delivery Time :	120 work days
Payment Terms :	T/T	Supply Ability :	20 set/year

Place of Origin:	CHINA	Brand Name:	ADVS
Model Number:	ORP-250/10

Detail Information
Product Name:	250mm Twin-screw Evaporation Extruder	Model:	ORP-250/10
Diameter:	246mm	L/D Raiton:	7.5
Power (kW):	90	DO/DI:	2
Center Distance:	186mm	Warranty:	1 Year (12 Months)
Highlight:	250mm Twin Screw Extruder , Twin Screw Extruder Center Distance 186mm , 90kw double screw extruder machine

Product Description

ORP-250/10 twin-screw evaporation extruder

1,SPECIFICATIONS:

NO.	ITEMS	SPECIFICATIONS	QTY
1	Extruder	ORP-250/10	1 unit
2	Control system	MC-25A electric control cabinet	1 set
3	Vacuum system		1 set
4	Heat conduction system	Oil circulation temperature control machine	1 set
5	Parts		1 set
6	Special disassembly tool		1 set

2,TECHNICAL PARAMETERS:

NO.	ITEMS	PARAMETERS
1	diameter	246 mm (max)
2	L/D	7.5
3	DO/DI	2
4	Center distance	186 mm
5	Power	90 KW
6	Speed ratio	1:4
7	Gearbox speed ratio	18.75:1
8	Shaft A speed	0-20 rpm
9	Shaft B speed	0-80 rpm
10	Barrel length	640 mm/unit
11	Effective volume	≈ 160L

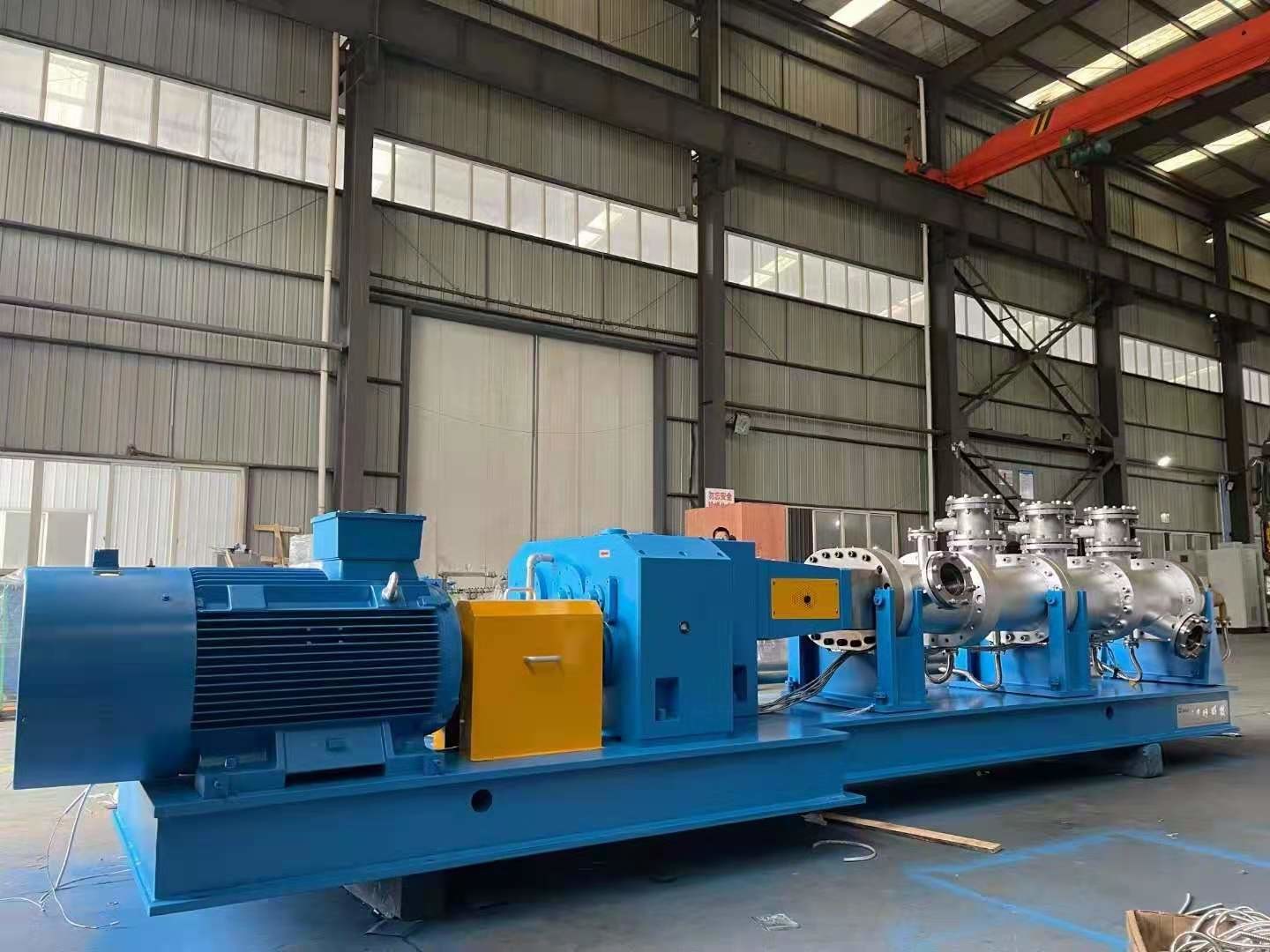

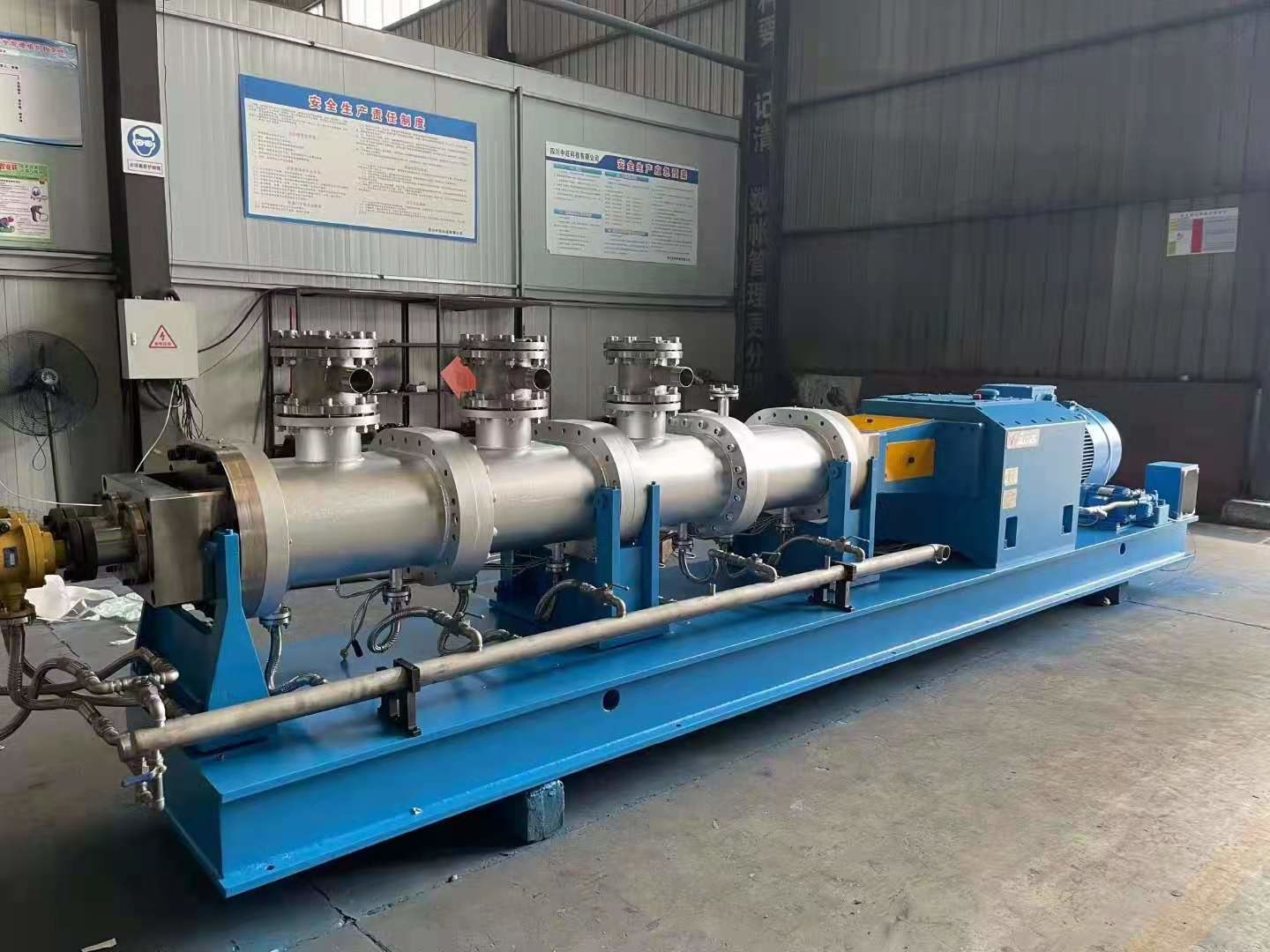

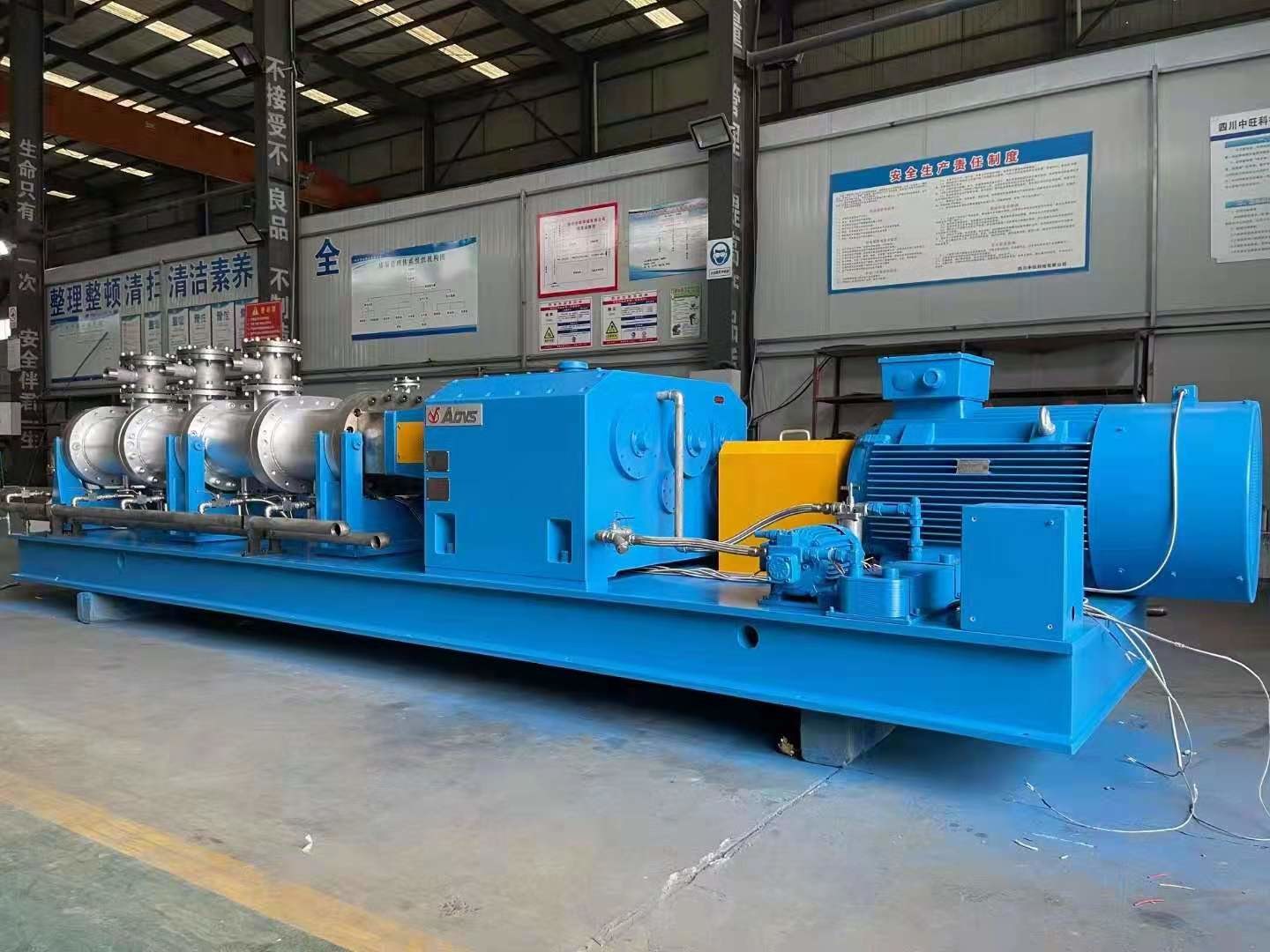

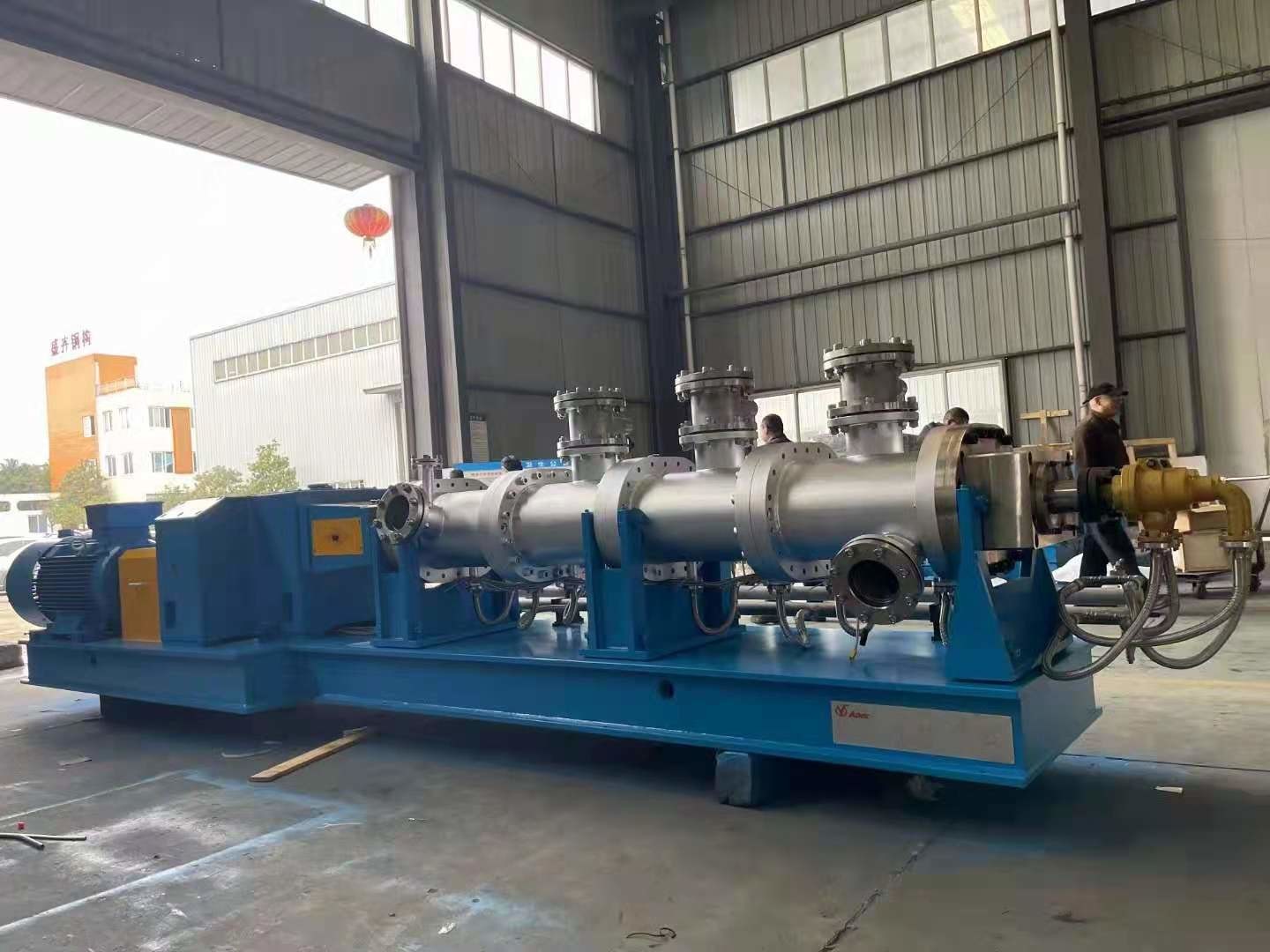

3,Photos:

90KW 250mm Twin Screw Extruder Center Distance 186mm 0
