Product Description

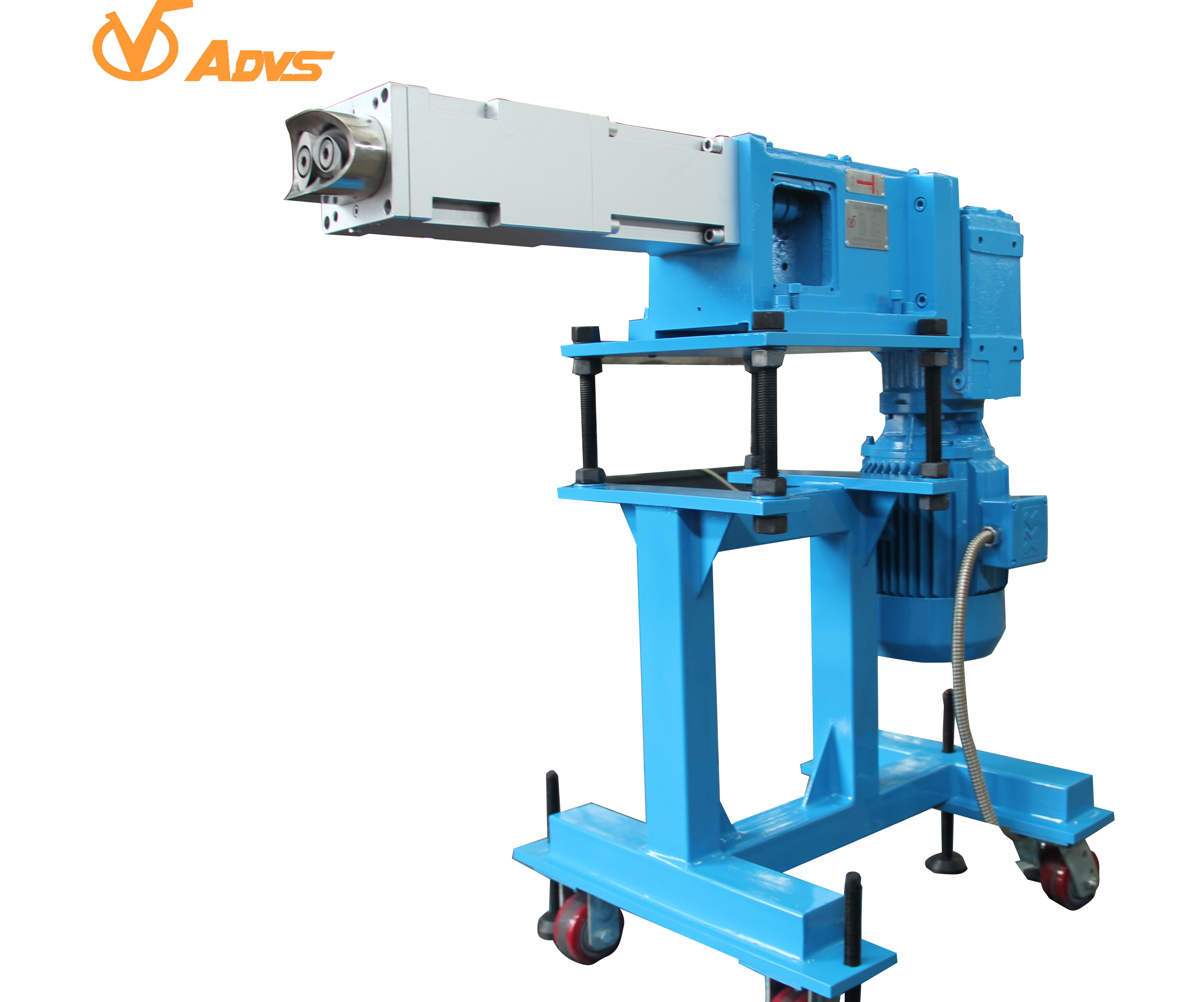

CWJ65 Twin screw side feeder for feeding short Glass Fiber max. 250kg/h
Our CWJ65 side feeder can be used to feed powders and short fibres, which can improve the output and reduce abrasion of scew and barrels. And segmented screws available. Barell with cooling function is available.
Feeding materials including
Powder:CaCO3,Tacl powder,TiO2,Carbon black, BaSo4,Mica,Starch,etc.;
Short fiber: GF,CF,etc.
Technical data
| Specification |
Technical data |
|
· 2 section barrels
· 2 pcs screw shaft
· 1 reducer motor
· 1 gearbox
· 1frame with wheels
|
motor power |
4 kW |
| ratio |
10 |
| Screw speed |
300 rpm |
| Screw diameter |
57.8 mm |
| Center distance |
48 mm |
| L/D |
10:1 |
| screw |
Segment screw with wear resistant material |
| barrel |
High hardness wear-resisting material Cr12MoV, |
| The reserved heating part;no cooling waterway |
| capacity:60～250kg/h |
Features of CWJ side feeder
involute connection with shaft,
integrated alloy liner in barrels,
vertical connected with extruder,
small gap between screw and barrel,
suitable for powder and glass fiber and other inorganic of the fillers,
governor free state;
movable with wheels
About us
We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.
We can supply :Twin screw extruder production line;
High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;
Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.
