Product Description

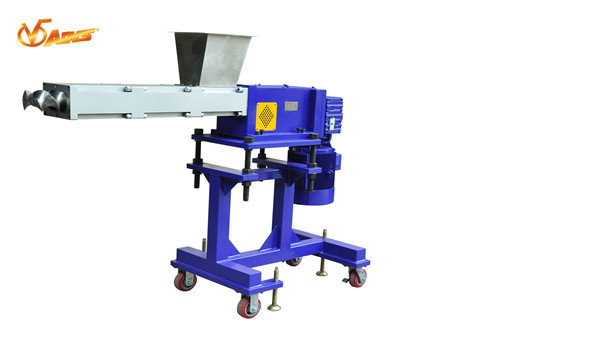

CWJ92 Twin screw side feeder for feeding Glass fiber, CaCO3, Talc powder, Carbon black 600kg/h
Our CWJ series side feeder can be used to feed powders and short fibres, which can improve the output and reduce abrasion of scew and barrels. And segmented screws available. Barell with cooling function is available.
Feeding materials including
Powder:CaCO3,Tacl powder,TiO2,Carbon black, BaSo4,Mica,Starch,etc.;
Short fiber: GF,CF,etc.
Technical data of CWJ92
| Specification |
Technical data |
|
· 2 section barrels
· 2 pcs screw shaft
· 1 reducer motor
· 1 gearbox
· 1frame with wheels
|
motor power |
7.5 kW |
| ratio |
10 |
| Screw speed |
300 rpm |
| Screw diameter |
90 mm |
| Center distance |
72mm |
| L/D |
10:1 |
| screw |
Segment screw with wear resistant material |
| barrel |
High hardness wear-resisting material Cr12MoV, |
| The reserved heating part;no cooling waterway |
| capacity:300～600kg/h |
Features of CWJ side feeder
involute connection with shaft,
integrated alloy liner in barrels,
vertical connected with extruder,
small gap between screw and barrel,
suitable for powder and glass fiber and other inorganic of the fillers,
governor free state;
movable with wheels
