28 - 80mm Dia Counter Rotating Twin Screw Extruder Machine 45 - 750KW Motor Power

Brand Name:	ADVS
Model Number:	HPH Series
MOQ:	1
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO9001

Type:

High Speed

Application:

PP,PA,PBT, ABS, PC, POM, PPS, PT

Warranty:

Extruder 1 Year, Gear Box 3years

Item:

Twin Screw Extruder Machine

Feature:

High Speed

Serise:

HPH

Packaging Details:

Wooden Case Plate, Damp Proof Plastic Lining

Highlight:

twin screw compounder

twin screw extrusion machine

Product Description

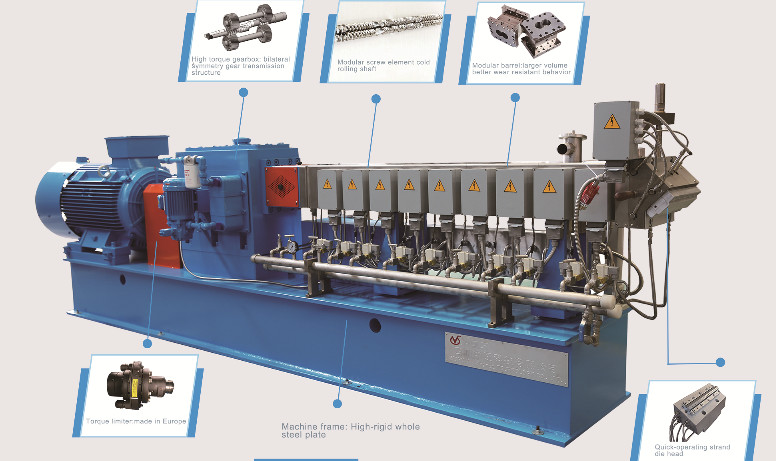

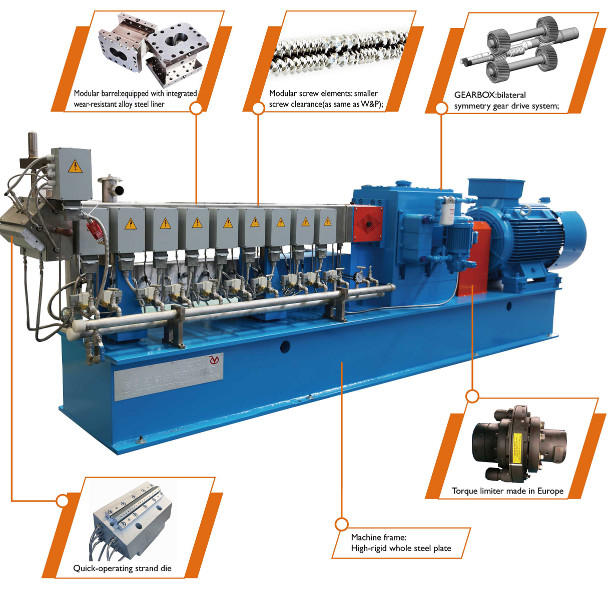

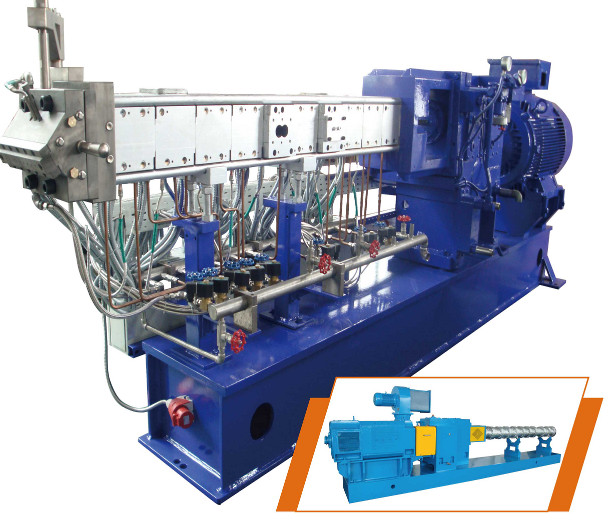

HPH Serise High Speed Twin Screw Extruder

	HPH28	HPH44	HPH53	HPH65	HPH80
Screw diameter	28	44	53	65	80
L/D	40	40	40	40	40
Motor power	45	185	280	500	750
Max. Speed	1800	1800	1800	1800	1500
T/A³	11.3	11.3	11.3	11.3	11.3
Center distance	22.5	35.8	42	51	63.8
OD/ID	1.66	1.66	1.66	1.66	1.66
Output Range	100~150	380~650	800~1200	1200~2000	1500~2600

About Us:

Sichuan Advance Technology Co., ltd is dedicate to develop, design, and manufature co-rotation, counter-rotation parallel twin-screw extruder production line. We integrate and upgrade these experiences to create our own transmission concept and form our core technology "bilateral gear symmetrical driving system". The technology enables our extruder have the advantages of "high torque, high efficiency, low energy-consumption, high price/ performance ratio,long service life". We keep pace with the first-class extruder manufacture in the world.
