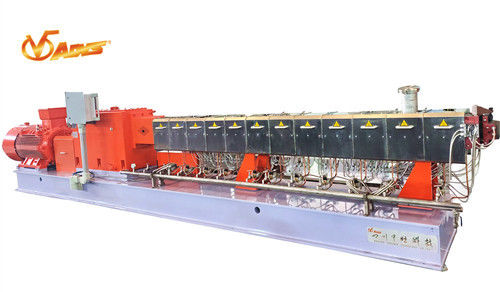

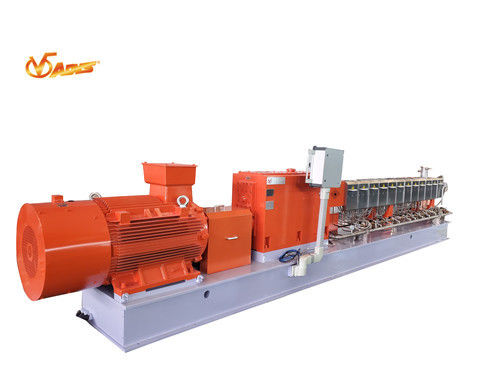

Multiple Feed Plastic Extrusion Machine , 20 - 6600Kg/H Precious Plastic Extruder

Name: Multiple Feed Plastic Extrusion Machine , 20 - 6600Kg/H Precious Plastic Extruder
Brand: Sichuan Advance technology Co.,Ltd
SKU: HE Series
Price: 117,000.00 USD
Availability: InStock

Brand Name:	ADVS
Model Number:	HE Series
MOQ:	1
Price:	USD 34000-200000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO9001

After-sales Service:

Engineers Available To Service Machinery

Warranty:

Extruder 1 Year, Gearbox 3 Years

Other Name:

Twin Screw Extruder Machine

Output:

20~6600Kg/h

Product Type:

Granulating Extruder

Exhaust:

Exhaust

Packaging Details:

Wooden Case Plate, Damp Proof Plastic Lining

Highlight:

twin screw compounder

double screw extruder machine

Product Description

HE Series High Standard Twin Screw Extruder Machine, Output 20~6600Kg/h

Basic Infromation :

Model NO.	HE Series
Type	Twin Screw Extruder
Plastic Processed	ABS
Product Type	Granulating Extruder
Feeding Mode	Multiple Feed
Assembly Structure	Integral Type Extruder
Screw	Twin-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Trademark	ADVS
Transport Package	wooden Box
Specification	screw diameter 43mm
Origin	Si Chuan China

Technical datas of HE series high standard extruder :

Datas/Type	HE27	HE43	HE51	HE58	HE62	HE70	HE77	HE92
Screw diameter	27	43	51	58	61.5	70	77	92
L/D	40	40	40	40	40	40	40	40
Motor power	37	132	250	355	400	600	650	1000
Max. Speed	1500	1200	1200	1200	1200	1200	1000	1000
T/A3	11.3	13.9	13.9	13.9	13.9	13.9	13.9	13.9
Center distance	22.5	35.5	42	48	50	58.5	63.5	76
OD/ID	1.54	1.55	1.55	1.55	1.55	1.55	1.55	1.55
Output range	20~120	220~500	700~1200	1100~1500	1300~1800	1700~3000	2400~4000	3600~6600
