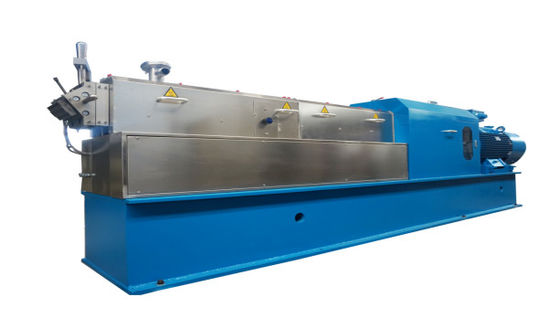

350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

Brand Name:	ADVS
Model Number:	HE 35
MOQ:	1 set
Price:	USD 34000-200000
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO9001

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Screw Design:

Double

Warranty:

Extruder 1 Year; Gearbox 3 Years

Plastic Processed:

PET,PS,EVA,PET,PP ,PBT,PA

Keyword:

Compounding Twin Screw Extruder

Apply For:

Experimental Facilities

Packaging Details:

Wooden Case Plate, Damp Proof Plastic Lining

Highlight:

twin screw compounder

,

double screw extruder machine

Product Description

HE35 Experimental Facilities Twin Screw Extruder Machine, Output 350Kg/h

Basic Infromation :

Model NO.	HE 35
Type	Twin Screw Extruder
Plastic Processed	ABS
Product Type	Granulating Extruder
Feeding Mode	Multiple Feed
Assembly Structure	Integral Type Extruder
Screw	Twin-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Trademark	ADVS
Transport Package	Wooden case
Specification	screw diameter 35mm
Origin	Chendu China

Technical datas of HE series high standard extruder :

Datas/Type	HE27	HE43	HE51	HE58	HE62	HE70	HE77	HE92
Screw diameter	27	43	51	58	61.5	70	77	92
L/D	40	40	40	40	40	40	40	40
Motor power	37	132	250	355	400	600	650	1000
Max. Speed	1500	1200	1200	1200	1200	1200	1000	1000
T/A3	11.3	13.9	13.9	13.9	13.9	13.9	13.9	13.9
Center distance	22.5	35.5	42	48	50	58.5	63.5	76
OD/ID	1.54	1.55	1.55	1.55	1.55	1.55	1.55	1.55
Output range	20~120	220~500	700~1200	1100~1500	1300~1800	1700~3000	2400~4000	3600~6600

Parts and advantages

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.

Tags:

double screw extruder machine

twin screw compounder

twin screw extrusion machine
