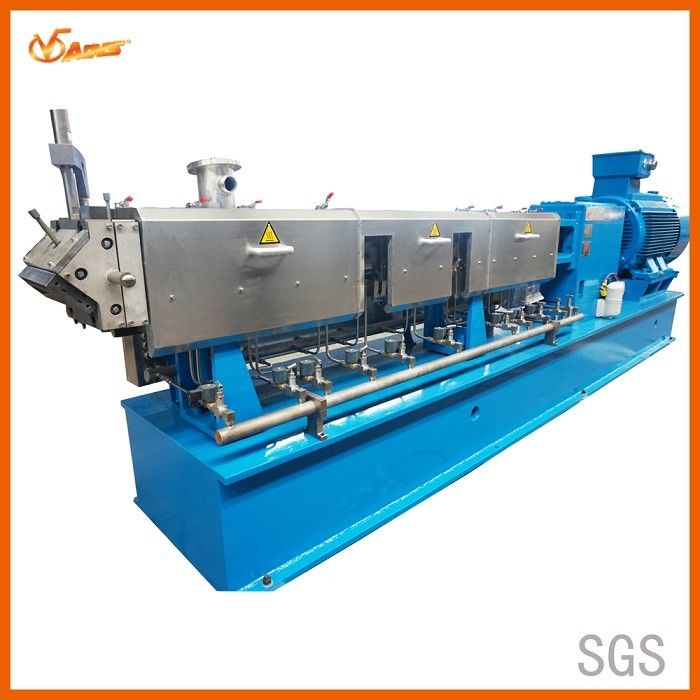

80KG/H 22mm Screw PVC Compounding Twin Screw Extruder

Product Description

80kg/H Pvc Screw Diameterv 22mm Compounding Twin Screw Extruder

1 . Introduction :

twin screw extruder is a kind of high efficiency equipment for plastic extrusion.It is suitable for produce PVC products from mixed powder.With different mold and other auxiliary equipments.It can produce plastic pipe,profile,board,sheet,granules and so on.

Feature

1.Suitable for various polyolefin materials: HDPE, PPR, PP,and ABSetc. Adopt advanced human-machine interface control system to realize the automatic control of the whole line.

2.Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process.

3.High-performance driving system; Wearable and easy to maintain.

2 . Configuration feartures of HPL58 screw extruder :

Gearbox : bilateral symmetry gear drive system ; Designed service life more than 72000 hours , average torque coeffcient = 10.4 , brand of bearings are SwedenSKF and Germany INA

Torque limiter : torque limiter imported from Germany ;

Barrels : iintegrated wear-resistant alloy steel liner ; Channel of barrels is annular jet type , not easy to be blocked ;

Screw shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is high imported from Finland .

Material of shaft is imported from Finland ;

Heating medium : heating rod imported from Germany ;

Machine frame : high rigidity whole steel plate welding ;

Electrical system : PLC and instrument control for your choice ; control cabinet and power cabinet are seperate , strong and weak electricity

are isolated installed .

speciication

3 . Pictures :
