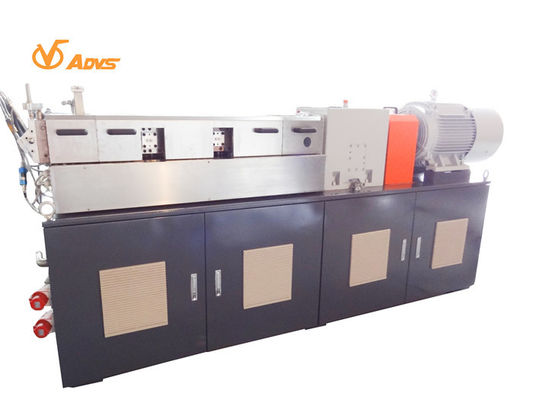

18.5 kW Laboratory Twin-Screw Extruder (30 kg/h Output) for Compounding and Modification

The HPL27 laboratory twin-screw extruder is specifically engineered for laboratory process simulation, polymer compounding and material formulation development. It is equipped with two independently controlled side feeders, allowing simultaneous addition of multiple fillers, additives and masterbatches, which significantly enhances formulation flexibility and expands experimental scope.

This equipment features excellent process adaptability and outstanding energy efficiency. It supports seamless adjustment of all critical processing parameters including temperature profile, screw speed and feeding rate, ensuring precise control over material processing conditions. It is suitable for both research and development experiments in academic and industrial laboratories, as well as small-batch pilot production. The extruder can handle processing requirements for most common polymer materials and their composites.

1. Engineering Plastic Granulation

   ABS, PC, POM, PP, PBT, PE and PA

2. Special Engineering Plastic Processing

   PA 6T, PA 9T, LCP, PPS and PEEK

3. Rubber-Plastic Blend Modification

   Blends of PP and SBS, blends of PE and SBS, blends of PS and SBS, blends of PA and EPDM, blends of EVA and silicone rubber

4. Polymer Blending

   Blends of PC and ABS, blends of PA and ABS, blends of CPE and ABS, blends of PP and EPDM, blends of PA and SBS, among others

5. Masterbatch Production

   Color masterbatch, functional masterbatch, white masterbatch and black masterbatch

6. Polymer Compounding and Modification

   Including filler compounding and fiber reinforcement

7. Extrusion for Film Production Lines

   BOPP, BOPET, BOPI, BOPA and BOPS films, battery separator films and seawater desalination films, among others

• High output

  The output is 1-2 times larger than the same size extruder from other lower torque twin screw extruders.

  The biggest extruder can output up to 12T/h per set.

• Energy-saving

  For the same output , our small size extruder can replace the big size of other extruder, such as our HPL51 has more output than other 65 extruder , smaller extruder, less energy consumption,less material consumption, smaller production areas.

  And we use heat rod instead of cast copper heater, which can save 15%-20% energy.

• Advanced design

  High torque: carrying capacity factor of gearbox up to 15Nm/cm3;

  High speed: max. 1800rpm/m；

• Long service life

  bearings on output shaft 2 without load, which greatly extended the service life of the bearings on the weak axis , gearbox life can reach 72000 hours (10 years)；

• Custom made design

  Wide D/d choice:1.33～2.0;

  Custom made clearance: minimum clearance can be 0.15mm；

We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life " (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.

We can supply :Twin screw extruder production line;

High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;

Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
