Buss Twin Screw Extruder Machine Parts 3 Flighted Screw Elements custom design

Product Description

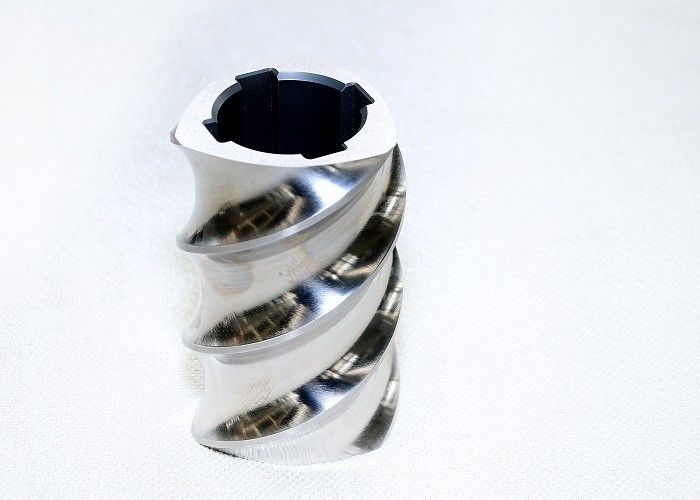

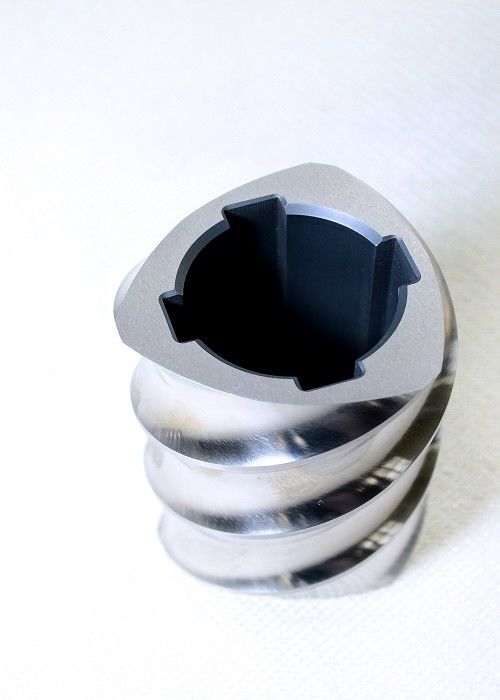

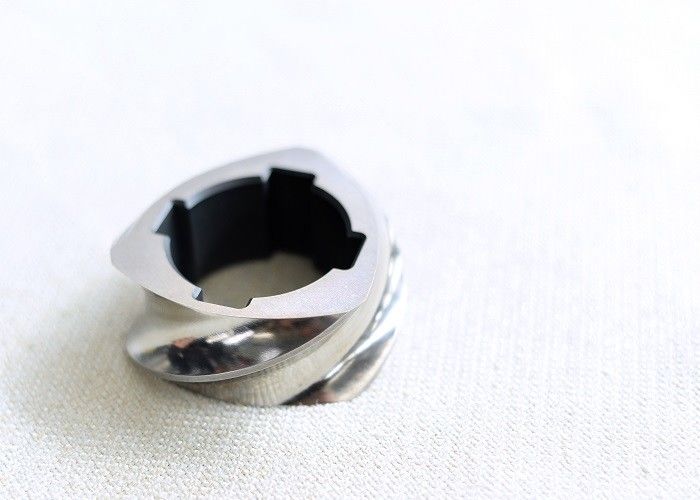

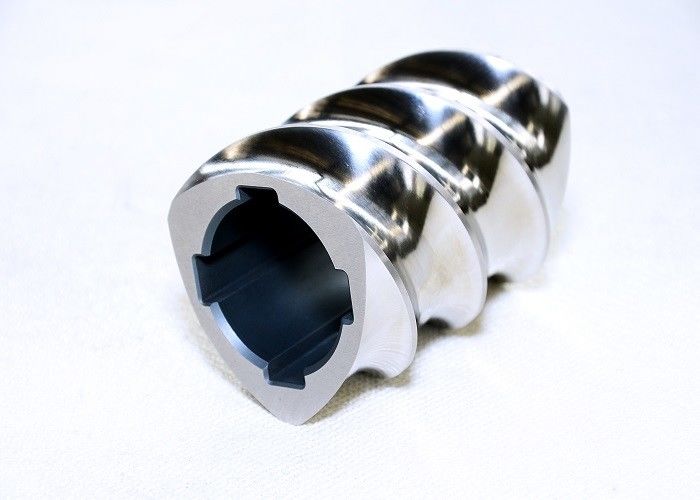

Screw Elements for Buss Twin Screw Extruder 3-Flighted Screw Elements

1 .  Introduction :

3-flighted screw element can give raw material a higher average shear rate and shear force under the same screw rotation speed , because of the shallow screw groove , thin material layer , three head is better than two head in heat transfer , and is good for raw material plasticizing , melting . But because of strong shear force , 3-flighted screw element is generally not suggested to shear sensitive material , such as glass fiber , PVC , etc .


2.Machining range and feature :

a . All the materials are purchased from the domestic brands or European twin-screw specialty materials suppliers , which tested by material analysis and metallurgical inspections to ensure the quality ;

b . The internal splines is checked by the spline plug to ensure interchangeability of components;

c . All components are machined by CNC machines to ensure the shapes and tolerances of the elements;

d . Adopt the European high-speed  steel powder processing technology , and do the treatment according to the strict heat treatment process to ensure the wear and corrosion performance same as the foreign brands ;

e . Professional technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services ;

f . There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time . The common components have a lot of stock , even the new one , it can be delivered within 45 days.

g . The modern management system can ensure the products 100% qualified and tracked .

3 . Application of the screw configuration :

screw configuration :

means a structure are composed of different combinations to achieve the desired performance , such as  disperse , shear effect , solving the requirements of mixed materials as well as the production stability .

Depending on the nature of work being carried out , there are intake zone , conveying zone , melting zone , natural venting zone , mixing zone , vacuum venting zone and matering zone .

Different screw element own different features in different extrusion process , we should choose and design the right screw elements based on different extrusion staus in order to optimize the overall comprehensive performance in the extrusion process.
