Co Rotating Twin Screw Extruder Machine Parts 10mm - 120 Mm Screw Shaft
Contact Person : Grace Pu
Phone Number : 86-18180485887
WhatsApp : +8618180485887
| Minimum Order Quantity : | 1pcs | Price : | USD 50-130000 |
|---|---|---|---|
| Packaging Details : | Wooden case | Delivery Time : | 60 days after payment of deposit |
| Payment Terms : | T/T | Supply Ability : | 3000pc per year |
| Place of Origin: | SiChuan, China | Brand Name: | ADVS |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | STS series |
|
Detail Information |
|||
| Cnc Machining Or Not: | CNC Machining | Plastic Processed: | PE,ABS,PS,EVA,PET,PP,PBT,PA |
|---|---|---|---|
| Screw Design: | Involute Spline | Material Capabilities: | HIP-WR15E, 40CrNiMo |
| Application: | Granles, Sheet, Profile | Extruder Model: | STS MC11 |
| Highlight: | extruder components,twin screw extruder elements |
||
Product Description

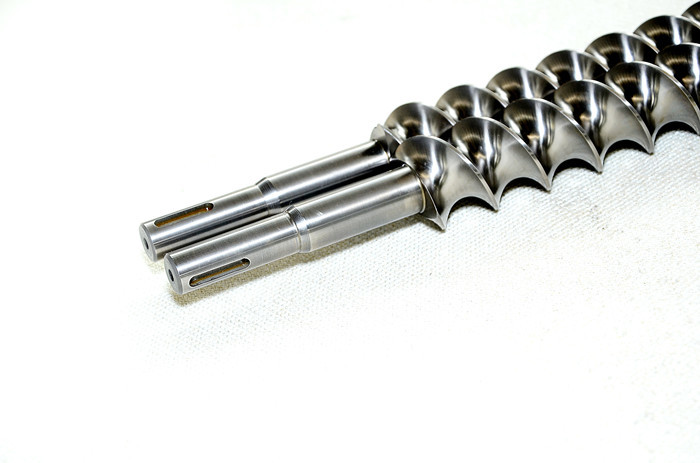

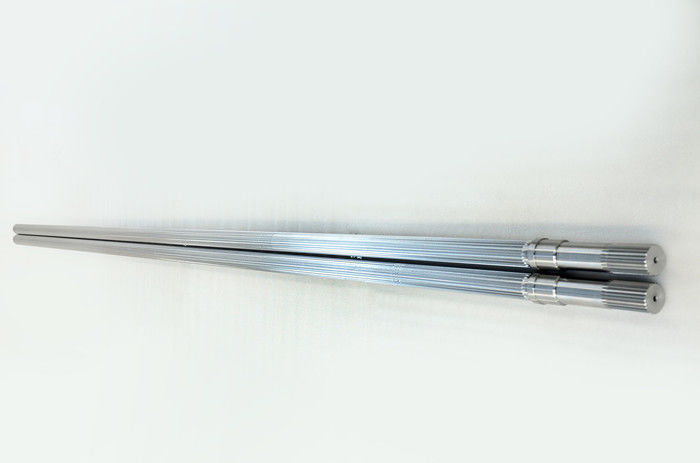

Screw Shaft for Coperion STS all types twin screw extruder
We can provide all types screw shafts for twin screw extruder, including Coperion,Berstroff,Leistritz,W&P,JSW,KOBE,TOSHIBA, Maris
sizes ranges from 16mm to 400mm. Screw shaft of Coperion STS MC11 series is best seller of our spare parts.
Techincal data
| Material | HIP-WR15E |
| Manufacturing process | machined by spline shaft milling machine |
| Screw design | involute spline |
| Machine range (Diameter) | Dia. 35-94mm |
| Machine range (Length) | 500-9000mm |
| Max. torque per shaft | 5350Nm |
| Spec. torque (Nm/cm3) | 11.3 |
Our service
1. Provide spareparts including barrels, screw elements, shafts, etc.
Screw element Dia.: 16-400mm
Barrel Dia.: 15.6-500mm
2.Repair and replace imported gearbox
Gearbox range from 16-450mm(screw dia.)
3.Repair and replace imported extruders,and optimization of production lines
About us
We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.
We can supply :Twin screw extruder production line;
High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;
Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.
