Five Axle Drive Twin Screw Extruder Gearbox 30 - 48mm Center Distance PHL62 Model

Contact Now

Five Axle Drive Twin Screw Extruder Gearbox 30 - 48mm Center Distance PHL62 Model

Minimum Order Quantity :	1 set	Price :	USD 11000-28000
Packaging Details :	wooden case	Delivery Time :	30-45 work days
Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	ADVS
Certification:	ISO9001	Model Number:	PHL62

Detail Information

Application:

Machinary

Function:

Change Speed

Highlight:

plastic extruder gearbox

machine gearbox

Product Description

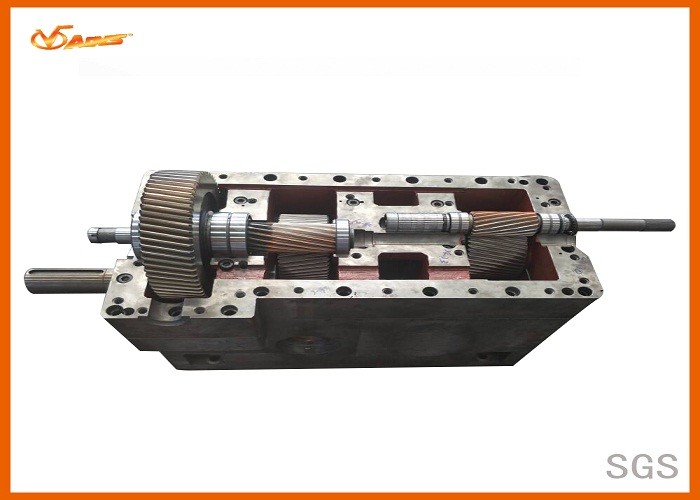

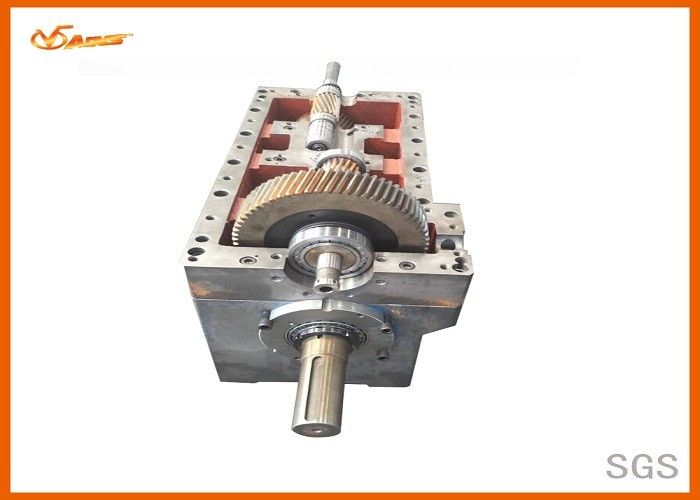

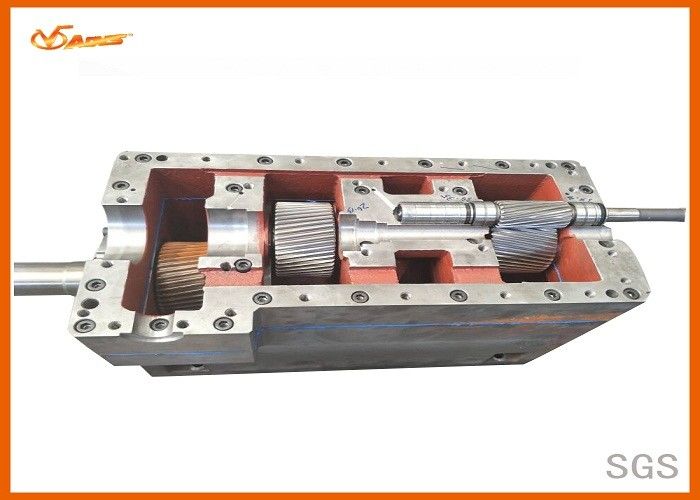

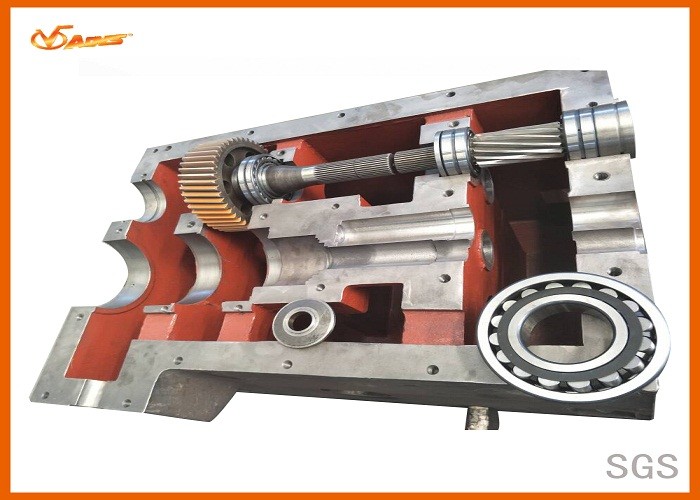

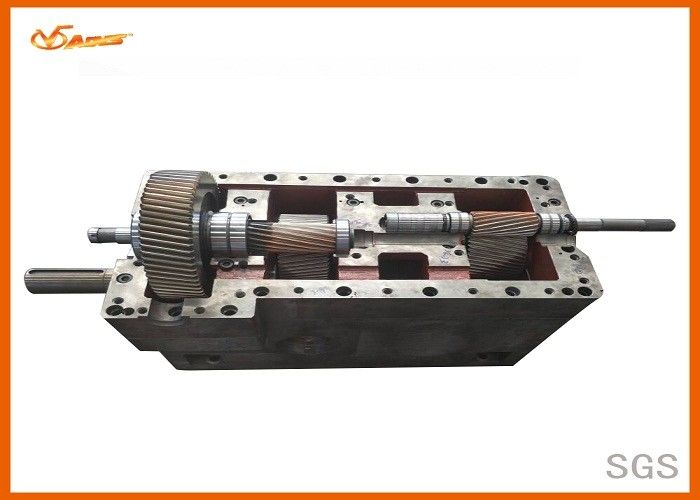

PHL62 Gearbox Adopted Bilateral Symmetry Gear Drive System

1 . Introduction :

gearbox: bilatral symmetry gear drive system; design service life more than 72000hrs, average torque coefficient=10.4, brand of bearing are Sweden SKF and Germany INA;

2 . Technical datas of PHL series stardard gearbox :

screw diameter	57-66mm	37~42mm	48-54mm	53-62mm	56-63mm
center distance	52mm	60mm	64mm	76mm	78mm
n2	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax
rpm	kw N.M KN	kw N.M KN	kw N.M KN	kw N.M KN	kw N.M KN
300	75 2X1190 227	110 2X1750 290	144 2X2290 290	220 2X3500 426	250 2X3980 426
400	90 2X1070 227	144 2X1720 290	185 2X2200 290	315 2X3760 426	330 2X3960 426
500	110 2X1050 227	185 2X1770 361	240 2X2290 361	390 2X3750 507	415 2X3980 507
600	144 2X1150 268	220 2X1750 361	280 2X2230 361	450 2X3600 507	500 2X3980 507

screw diameter	34-40mm	37~42mm	48-54mm	53-62mm	56-63mm
center distance	30mm	33.4mm	42mm	48mm	51mm
n2	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax	Pmax 2T Fmax
rpm	kw N.M KN	kw N.M KN	kw N.M KN	kw N.M KN	kw N.M KN
300	15 2X238 55	20 2X318 85	37 2X590 227	55 2X875 227	75 2X1190 227
400	19 2X229 55	27 2X322 85	50 2X590 227	75 2X895 227	90 2X1070 227
500	24 2X229 55	35 2X330 85	60 2X580 227	90 2X860 227	110 2X1150 227
600	30 2X238 55	42 2X330 85	75 2X596 268	110 2X875 268	144 2X1160 268

2 . PHL62 gearbox description :

Application

Machinery

Transport Package

Wood Bar Box or Custom Made

Function

Speed Changing, Speed Increase

Layout

Five Axle Drive

Hardness

Hardened Tooth Surface

Installation

Horizontal Type

Step

Four-Step

Type

Cylindrical Gear Box

Trademark

ADVS

Origin

Si Chuan China
