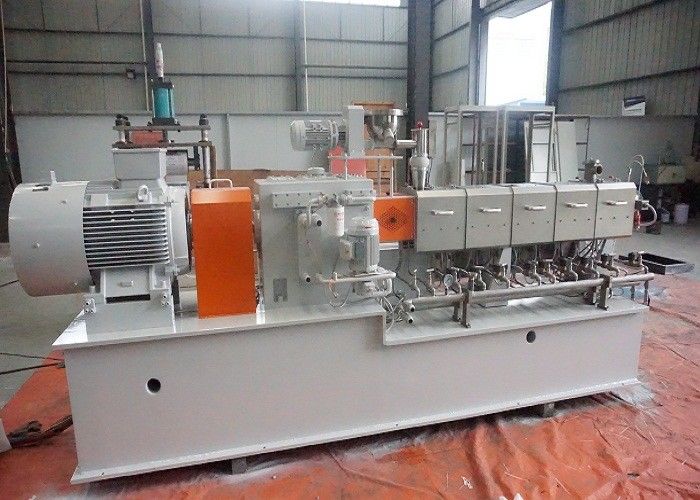

Co Rotating Parallel Plastic Twin Screw Extruder Output 200 - 350 Kg / H

Product Description

HPL40 Co-Rotating Parallel Twin Screw Extrusion Output 200kg-350kg

1 . Configuration feartures of HPL series extruder :

gearbox : bilatral symmetry gear drive system ; design service life more than 72000hrs , average torque coefficient=10.4 , brand of bearing are Sweden SKF and Germany INA ;


Torque limiter : torque limiter imported from Germany ;

Barrel : integrated wear-resistant alloy steel liner ; Channel of barrel is annular jet type , not easy to belocked ;

Scew shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is high imported from Finland .

Heating medium : heating rod imported from Germany ;

Machine frame : high rigidity whole steel plate welding ;

Electrical system: PLC and instrument control for your choice; control cabinet and power cabinet are seperate , strong and weak electrical are isolated installed .

2 .  Typical application :

Reinfoce modification : PP,PA,PBT, ABS,, PC, POM, PPS, PET+Carbon fiber, glass fiber

Filled modification :  PE, PP, EVA+CaCo3,talcum powder,titianium dioxide, carbon black and other inoranic filler;

Masterbatch : color masterbatch,flame retardant masterbatch,carbon black masterbatch,degradable masterbatch;

Plastic alloy : PC+ ABS, PA+ABS, PA+PE, PBT+PET,etc.

Special Engineering Plastic : PEEK, PEI, PPS,PPSU, PA6T,PA9T,LCP,etc.

High compouding dispersion extrusion : nano material, powder coating and fiber grade masterbatch ;

Reaction extrusion :  polyreaction andpolycondension ;

3 . Product description :
