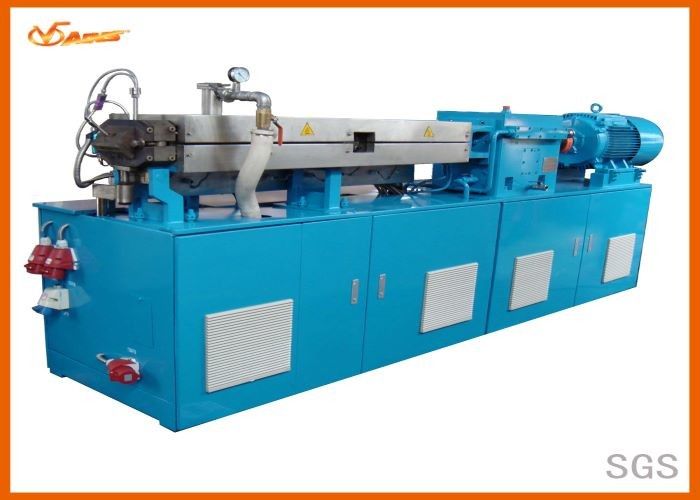

Split Type Twin Screw Extrusion Machine , PP / PE Extruder Machine Bule Color

Product Description

Split Type Twin Screw Extrusion Machine , PP / PE Extruder Machine Bule Color

1 . Configuration feartures of HPL27 screw extruder :

Gearbox : bilateral symmetry gear drive system ; Designed service life more than 72000 hours , average torque coeffcient = 10.4 , brand of bearings are SwedenSKF and Germany INA

Torque limiter : torque limiter imported from Germany ;

Barrels : iintegrated wear-resistant alloy steel liner ; Channel of barrels is annular jet type , not easy to be blocked ;

Screw shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is high imported from Finland .

Material of shaft is imported from Finland ;

Heating medium : heating rod imported from Germany ;

Machine frame : high rigidity whole steel plate welding ;

Electrical system : PLC and instrument control for your choice ; control cabinet and power cabinet are seperate , strong and weak electricity are isolated installed .

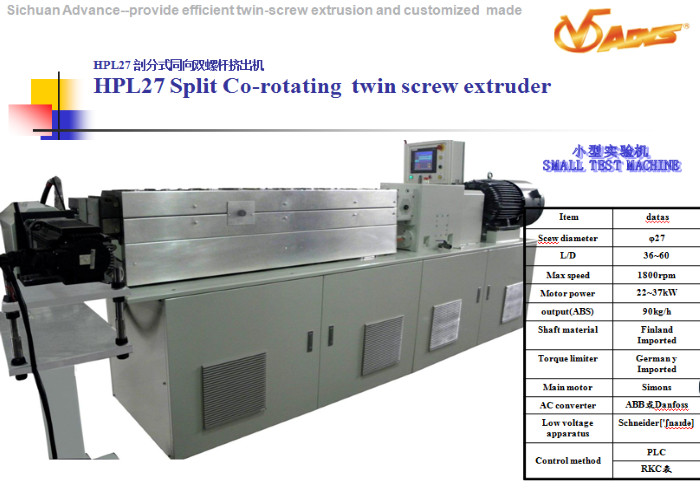

2 . Technical datas of HPL27 standard screw extruder :

3. Typical application :

Reinforce modification : PP ,PA ,PET + Carbon fiber ,Glass fiber ;

Filled modification : PE ,PP , Talcum powder , Titanium dioxide and other inorganic filler ;

4. HPL27 standard screw extruder :
