150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding

Brand Name:	ADVS
Model Number:	HLFT-D
MOQ:	1
Price:	USD 140000-280000
Payment Terms:	T/T
Supply Ability:	100 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

SiChuan, China

Certification:

ISO9001

Application:

Direct Molding Of Thermoplastics

Polymer:

PP,PA

Molding Way:

Press Moulding

QTY. Of Extruder:

1 SET

Packaging Details:

Wooden base plate, damp proof plastic lining

Supply Ability:

100 sets per year

Highlight:

two stage extruder

pellets production line

Product Description

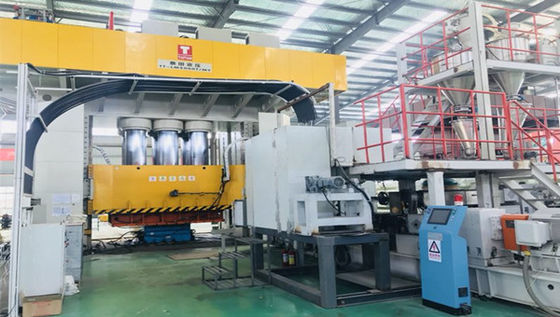

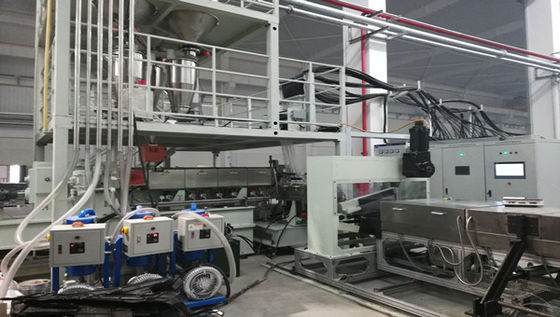

Long-Fiber Reinforced Thermoplastic-Direct Line(LFT-D)two-stage extruder, PP+GF

Process of LFT-D line(Two stage)

Technical advantages of LFT-D production lin( two stage)

Parts of line	Advantages description	Picture
Transmission gearbox	the most advanced ones: bilateral symmetry gear drive system; the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
LFTD special screw shaft	special soft mixed screw components. The patented flexible screw element independently developed by our company solve the technical problems of non-cutting and non-uniform dispersion of glass fibers.
Glass fibre preheating and yarn dividing device	makes the glass fibre better preheating and yarn dividing function and better dispersing function when the glass fibre enters the extruder.
Cutter	Five kinds of dimension blocks in one molding cycle, precise cutting with smooth surface and no rags. Thickness of products can be continuously adjustable automaticlly.

Technical datas

Type	LFTD300B	LFTD600B	LFTD1200B	LFTD2000B
Extrder output	300KG/H	600KG/H	1200KG/H	2000KG/H
Width of die plate	150mm	200mm	300mm	500mm
Thickness of die plate	8-30mm	10-40mm	10-50mm	15-65mm
Pies. Of GF	48	60	72	120
GF content	~45%	~45%	~45%	~45%
First stage extruder	HPL40	HPL62	HPL77	HPL95
Second stage xtruder	HPL62	HPL77	HPL95	HPL136
Cutting drive mode	Pneumatic/servo	Pneumatic/servo	Pneumatic/servo	Pneumatic/servo
Press	1000~1500T	2000~5000T	5000~8000T	6000~12000T

150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding 5

150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding 6

About us

We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.
We can supply :Twin screw extruder production line;
High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;
Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.
